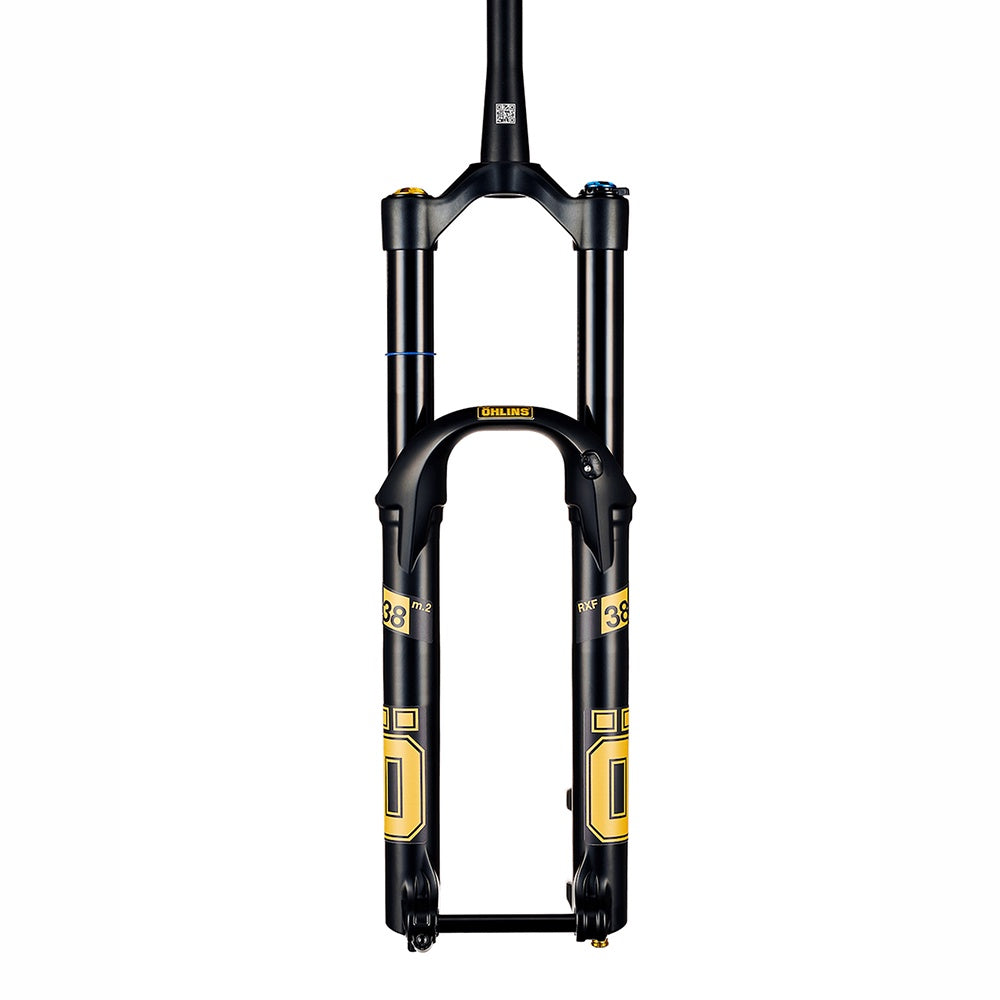

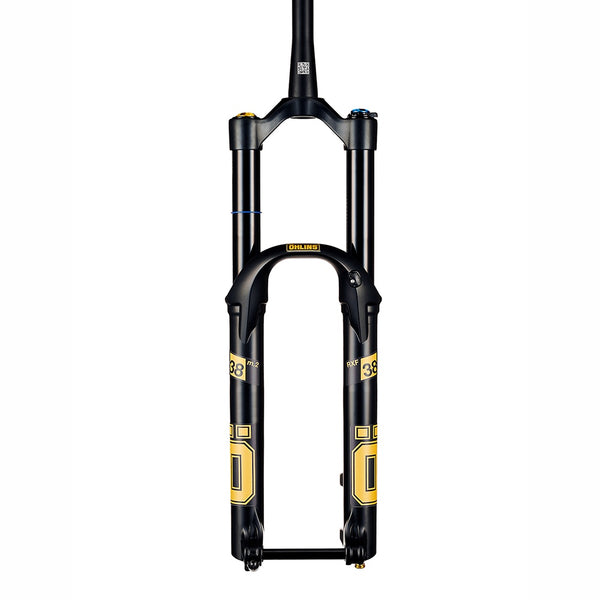

Ohlins RXF38 M2 29" Air Suspension Fork
Ohlins RXF38 M2 29" Air Suspension Fork
The Ohlins RXF sets the standard for precision and performance. The suspension technology that Ohlins brings to the MTB market in the RXF air spring, chassis and the TTX damper are world-leading with many other brands releasing similar products after a few years of head-scratching!
This time Ohlins has upped the ante with a 38mm chassis boasting better stiffness and control whilst maintaining the plush Ohlins feel.
The Ohlins RXF 38 is one the most tuneable forks on the market with a host of features to help you get the best performance from your setup as well as the awesome support that Brink offers in house via Plush Suspension.
Available in a range of travel options and offset options to suit all types of rider and bike as well as some awesome setup support from the Ohlins Performance Suspension Guide and custom tuning options available on request.
Features:
- TTX18 damping system
- Independent cartridge air spring and damper systems
- Air spring adjustable to 160/170/180 mm of travel
- Easy to tune three-chamber air spring system
- 38 mm stanchion diameter with 44mm
- Floating axle design to minimize friction
- Approved for eMTB use and available with eMTB compatible crowns
- Compatible with maximum tire sizes up to 29”x2.6
- Compatible with maximum rotor sizes up to 220mm, optimised for 200mm.
- Axle to crown measurement: 583mm @ 170mm stroke
- Weight: from 2320 grams
Specification:
| Travel | 160mm / 170mm / 180mm |
| Travel Adjustment | Internal - Service & parts required |
| Axle Spacing | 110mm Boost |
| Axle Type | 15mm Floating thru axle |
| Damper Type | Twin tube |
| Spring Type | 3 Chamber air spring |
| Compression Adjustment | High & low speed |
| Rebound Adjustment | Low speed |
| Air Spring Volume Adjustment | Infinite adjustment via 3 chamber air spring |
| Stanchion Diameter | 36mm |
| Stanchion Coating | Hard anodised |
| Offset | 44mm |
| Steerer Type | Tapered 1 1/8 - 1.5 |
| Steerer Material | Aluminium |
| Min. Rotor Size | 180mm |
| Max. Rotor Size | 203mm |
