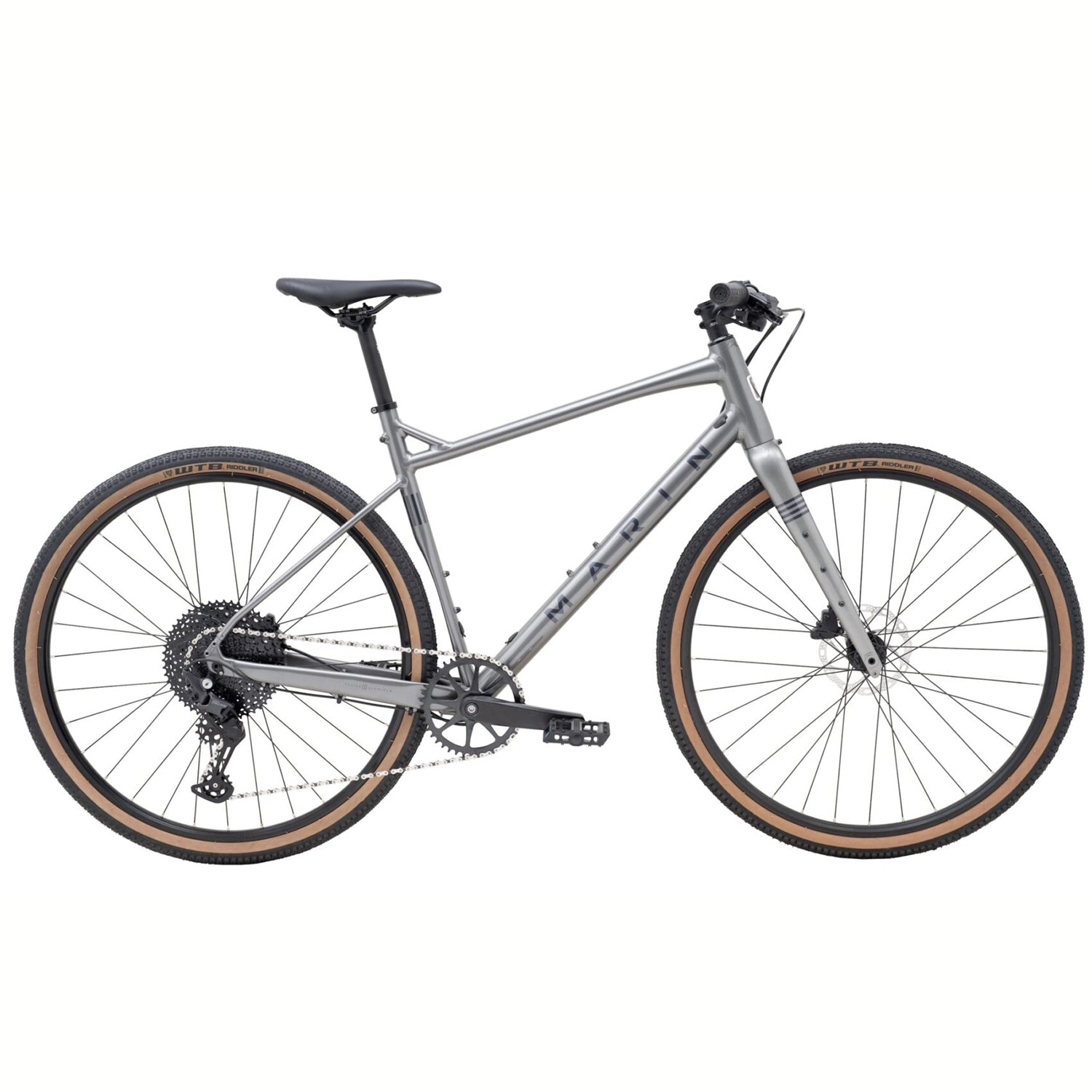

Marin DSX 1 Gravel Road Bike
LONG DISTANCE MIXED SURFACE COMMUTING
GRAVEL RIDING
ADVENTURE ON AND OFF-ROAD RIDING
Hopping up to a higher-spec Series 3 aluminium frame, the Marin DSX 1 has a whole heap of upgrades over the base spec version. Bolt-thru axles add stiffness and a carbon fork drops the weight and adds even more mounting points for bike-packing bags. There’s also an 11-speed 1X Shimano Deore drivetrain, WTB Riddler tyres, Tektro hydraulic brakes and plenty of reliable Marin components.
Key Upgrades from the DSX:
- Series 3 aluminium frame w/thru axles
- Full carbon fiber fork
- Wide-range Shimano Deore 11-speed drivetrain
SERIES 3 FRAME
The DSX FS, 2, and 1 feature a butted and formed Series 3 6061 aluminum frame with internal routing, 142x12mm thru-axles, flat mount disc brakes, and rack and fender eyelets.
The DSX (base) model utilizes a Series 2 6061 aluminum frame with internal cable routing, and rack and fender eyelets.
TYRE CLEARANCE
The DSX comes stock with 700x45mm tires, with room for 29x2.1”
knobbies.
DISC BRAKES
The DSX features the latest flat mount disc brake standard
for smooth, controlled stopping in all conditions with minimal
maintenance.
DROPPER POST ROUTING
Dropper posts are quickly becoming standard fare for gravel racers
and riders that spend significant time on rough surfaces, and the
DSX features internal dropper post routing for easy upgrades.
Frame | Series 3 DSX, 6061 Aluminium, Tapered Head Tube, Relieved BB, Internal Cable Routing, Mudguard and Rack Mounts, Flat Mount Disc, 142x12mm Thru-Axle |
Fork | Marin Full Carbon w/ Tapered Steerer, 12mm Thru-Axle, Flat-Mount Disc, Fender Eyelets |
Headset | FSA No.42 ACB, Sealed Cartridge Bearings, 1 1/8” x 1 1/2” |
Shifters | Shimano Deore, SLM5100, 11-Speed |
Rear derailleur | Shimano Deore, RDM5100, 11-Speed |
Chainset | Forged Aluminium, 42T Steel Narrow Wide Chainring |
Bottom bracket | Sealed Cartridge |
Chain | KMC X11 |
Cassette | Shimano, CSM5100, 11-Speed, 11-51T |
Wheelset | Marin Aluminium Double Wall, 21mm Inner, Disc Specific |
Hubs | Forged Aluminium Alloy, 142x12mm, Disc, 32H Forged Aluminium, 100x12mm, Disc, 32H |
Spokes | 14g Black Stainless Steel |
Tyres | WTB Riddler, 700Cx45mm |
Brakes | Tektro HD-R280 Flat Mount Hydraulic Disc, 160mm Rotor |
Handlebars | Marin MiniRiser |
Grips | Marin MTB |
Stem | Marin 3D Forged Alloy |
Saddle | Marin DSX |
Seatpost | Marin Alloy |
Pedals | Nylon Platform |
