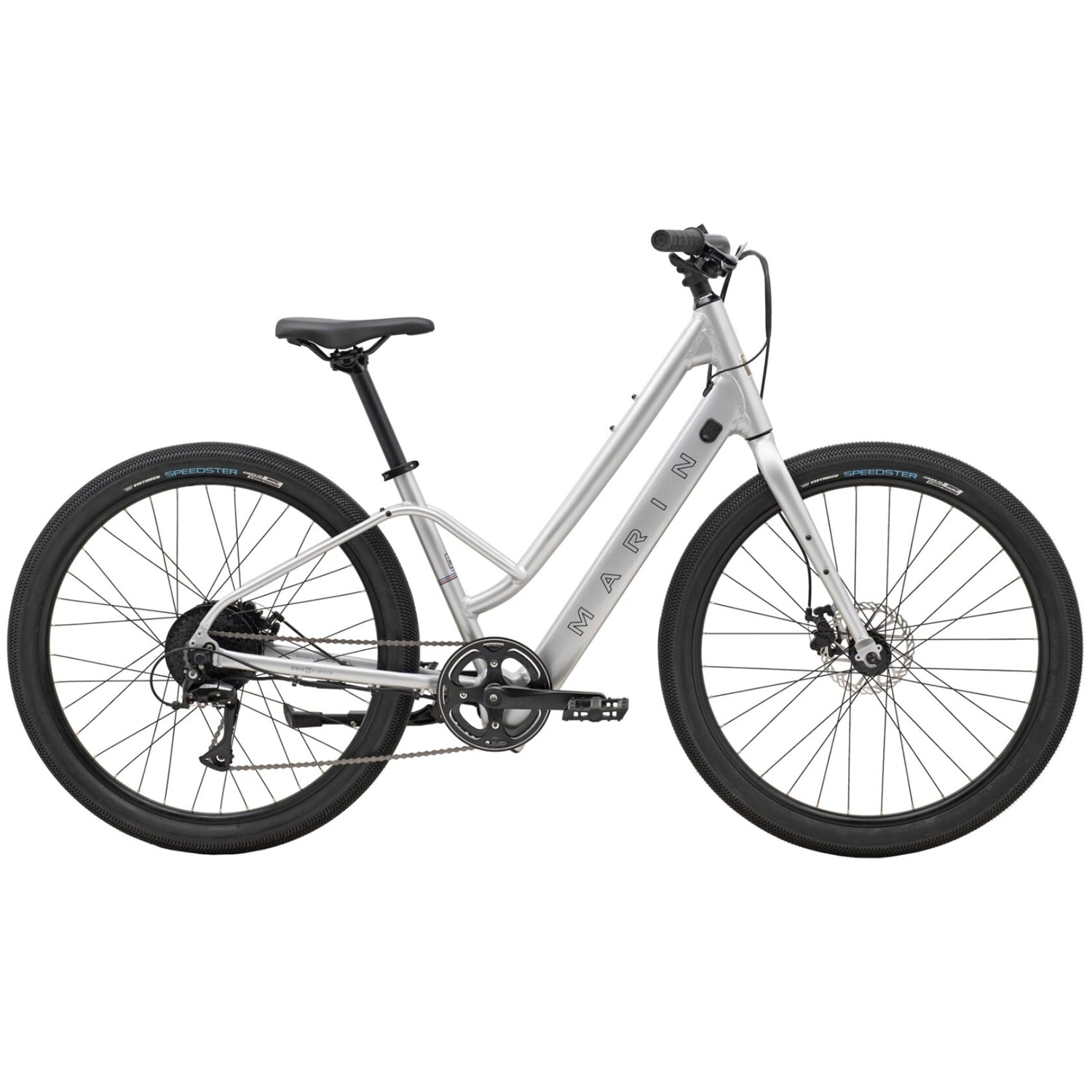

Marin Stinson E ST Electric Hybrid Bike
Marin Stinson E ST Electric Hybrid Bike
Marin's renowned Stinson comfort bike, now with a boost. The Stinson E takes all the beloved features of the standard model, but delivered with a smooth and powerful 250W rear hub motor to transform the fun and stylish bike into an amazing experience for everything from bike path cruising to daily commuting.
SERIES 1 FRAME
The Stinson E features a Series 1 6061 aluminium frame with exceptionally low standover, disc brake mounts, and rack and fender eyelets and high-volume 27.5” wheels. Stinson ST models further lower the standover height with a step-through frame design. Both versions incorporate the battery into the downtube for clean looks and added security.
ELECTRIC DRIVETRAIN
The Bafang rear hub motor provides 40Nm of torque in a compact and tidy package, and delivers top assisted speeds of 20mph, 32km/h (North America), and 25km/h for the rest of the world. Five levels of assist, accessed via a handlebar-mounted controller, means that riders can quickly dial in the level of assistance that best meets their needs and riding style. The controller also doubles as a display, showing speed, battery charge state, and assist level selected. The Bafang Go app supports real-time access to ride data, real-time access to human health data such as heartbeat and calorie data, and access to navigation steering and traffic tips.
INTERNAL BATTERY
A new feature for the model family, the 340Wh in-tube battery is neatly integrated into the Stinson E's downtube, protected and giving the bike a sleeker look. The charging port is easily accessible, under a weather-resistant cover.
DISC BRAKES
Disc brakes provide smooth, controlled stopping in all conditions.
STEP THROUGH DESIGN
The Stinson E ST features a step-through frame design with a lowered toptube for easier mounting and dismounting.
SHIMANO DRIVETRAIN
Shimano's stalwart Altus 8-speed drivetrain smoothly and reliably glides between the gearing.
SMOOTH-ROLLING RUBBER
The Stinson E rolls on Vee Tire Co's Speedster 27.5 x 2.35" tires, which feature high volume and low knobs for comfort and efficiency, and lots of gripping edges for control on pavement or improved off-road surfaces.
LIGHTING CONTROL
The Stinson E is equipped to power accessory lighting, with a wiring harness just waiting to be plugged into. Headlamp and taillamps are then controlled by holding down the system controller switch.
Motor | Bafang 250 Watt Hub Motor, 40Nm |
Battery | Bafang 340Wh, 36V, In-tube |
Display | Handlebar Mount LCD Switch & Display |
Kickstand | Alloy Center Mount |
Range, Charging Time | 19-62 Miles/25-100km (Based on Rider Weight, Terrain, Climate and Level of Assist Used), 6 Hours |
Frame | Series 1 Comfort, Ebike Specific, 6061 Aluminium, 27.5” Wheels, Disc Specific, Low-Step Design, Comfort Control Geometry, Kickstand Mount, Fender and Rack Mounts |
Fork | CrMo Steel, Straight Blade, Disc Specific, Fender and Rack Eyelets |
Headset | FSA, TH No.10P |
Shifters | Shimano Altus 8-Speed RapidFire |
Rear derailleur | Shimano Acera, 8-Speed |
Chainset | Alloy Crank, Steel 38T Chainring, Ring Guard |
Bottom bracket | Integrated Torque Sensing, Sealed Cartridge Bearings, Square Taper |
Chain | KMC Z8 |
Cassette | SunRace 8-Speed Freewheel, 11-34T |
Wheelset | Marin Aluminium Double Wall, Disc Specific |
Hubs | Bafang 250 Watt Hub Motor, 40Nm, 36H Forged Aluminum Alloy, 32H |
Spokes | 14g Stainless Steel |
Tyres | Vee Tire Co. Speedster, 27.5”x2.35”, Puncture Protection |
Brakes | Tektro MDM280 Mechanical Disc, 160mm Rotor |
Handlebars | Marin Alloy, 25mm Rise, 18˚ Backsweep |
Grips | Marin County |
Stem | Marin Alloy |
Saddle | Marin Comfort |
Seatpost | Marin Alloy, 30.9mm |
Pedals | Nylon Platform |
