Marin

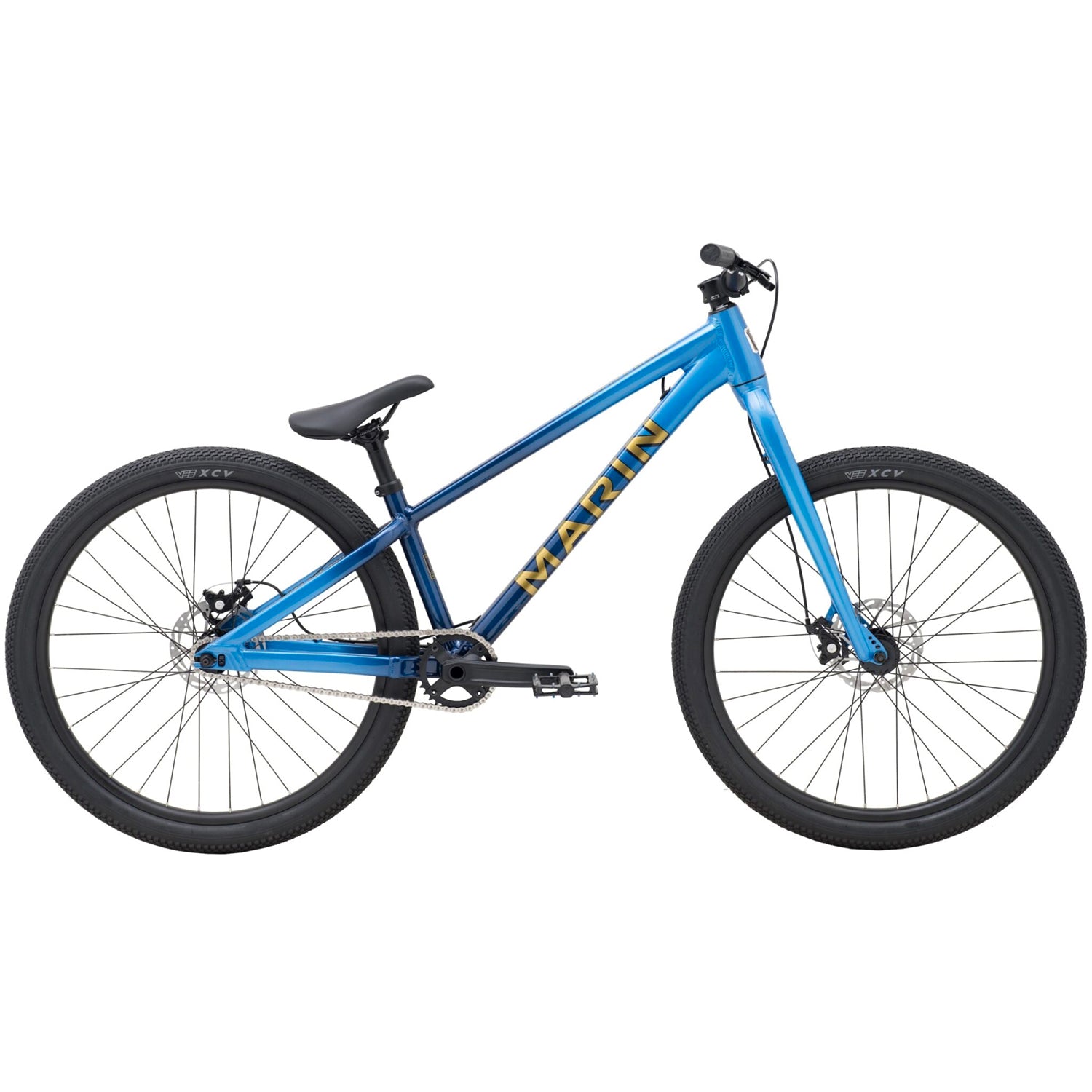

Marin Alcatraz 1 Dirt Jump Bike
Marin Alcatraz 1 Dirt Jump Bike
The Alcatraz 1 allows the rider to follow in Matt Jones’ footsteps to build and personalise the best dirt jump bike possible. At home boosting your local 6-pack, ripping up the pump track, or hitting the local skate park the Alcatraz has what you need to take care of business.
The Series 3 aluminium frame is built for the hard knocks and is stiff enough for lightning-fast acceleration and tough enough for the heavy hits. Short stays keep manuals easy and ambidextrous cable routing means you can run your brake on the left or right of the bars. There’s a suspension-corrected CrMo fork, front and rear Tektro disc brakes, Vee Tire rubber and plenty of bombproof Marin components. Best of all, it’s available in two frame sizes, regular and long.
SERIES 3 ALUMINUM FRAME
The Alcatraz features a 6061 Series 3 alloy frame, with a burly double butted tubesets for the best ride quality and stiffness, tapered headtubes for maximum strength on big jumps, and horizontal drop out with slotted IS disc brake tabs.
SHORT CHAINSTAYS
Marin have optimised the chainstay length of the Alcatraz to make sure you can have the shortest chainstays possible, giving you the ability to pop a wheelie or manual anywhere at anytime.
135X10MM HORIZONTAL DROPOUTS
The Alcatraz features 135x10mm horizontal dropouts — the standard in dirt jump technology for axle and dropout strength.
DIRT JUMP SPECIFIC SUSPENSION FORK
100mm travel X-Fusion Slant DJ-specific fork with air spring, compression and rebound damping, and tapered alloy steerer tube.
Frame | Series 3 6061 Aluminium, 26” Wheels, 135x10mm Horizontal Single Speed Dropouts, 73mm Threaded BB, ISCG 05 Tabs |
Fork | Marin Series 2 CroMo 26", Suspension Corrected, 100x9mm Dropouts |
Headset | FSA No 57E, Semi-Sealed Cartridge Bearings, 1 1/8" x 1 1/2” |
Chainset | Marin Forged Alloy, Alloy 32T Chainring, 104mm BCD |
Bottom bracket | External Sealed Cartridge Bearings |
Chain | KMC HL-1 |
Cassette | 14T Single Speed Cog |
Wheelset | Marin Custom Extrusion, 27mm Inner, Pinned Joint |
Hubs | Forged Alloy, 135x10mm, Bolt-On, Quad Sealed Bearings, Disc, 32H Forged Alloy, Bolt On 3/8" Axle, 100mm Spacing |
Spokes | 14g Black Stainless Steel |
Tyres | Vee Tire Co. XCV 26x2.25”, LSG Compound, Wire Bead |
Brakes | Tektro MD-M280 Mechanical Disc 160mm Rotor |
Handlebars | Marin Riser, 6061 Double Butted Aluminum, 31.8mm at center bulge, 38mm Rise, 750mm Width, 4º Up, 9º Back |
Grips | Marin MTN, Closed End |
Stem | Marin 3D Forged Alloy, 31.8mm clamp, 40mm extension |
Saddle | Marin DJ Saddle |
Seatpost | Marin Alloy, 30.9mm |
Pedals | Alloy Platform |
