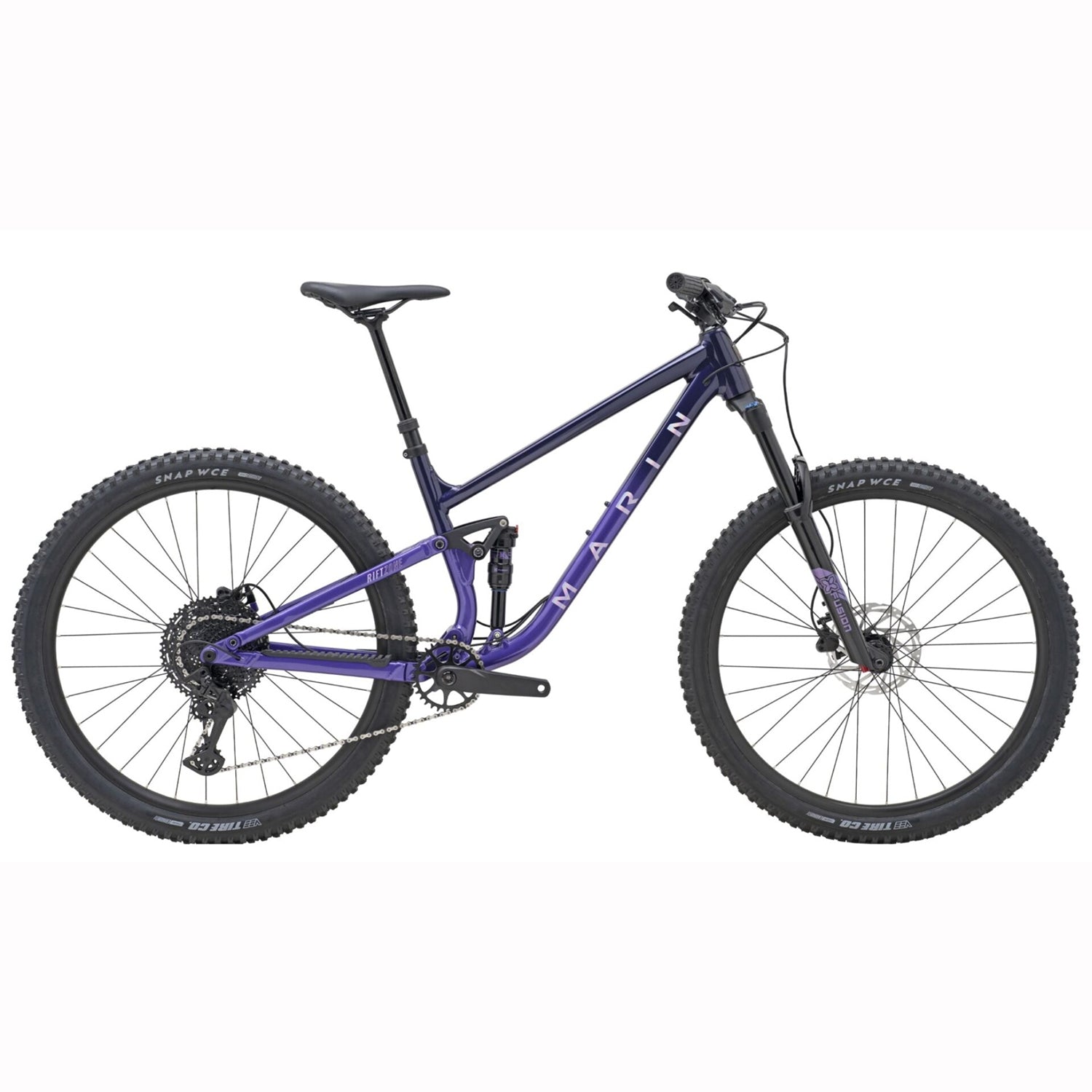

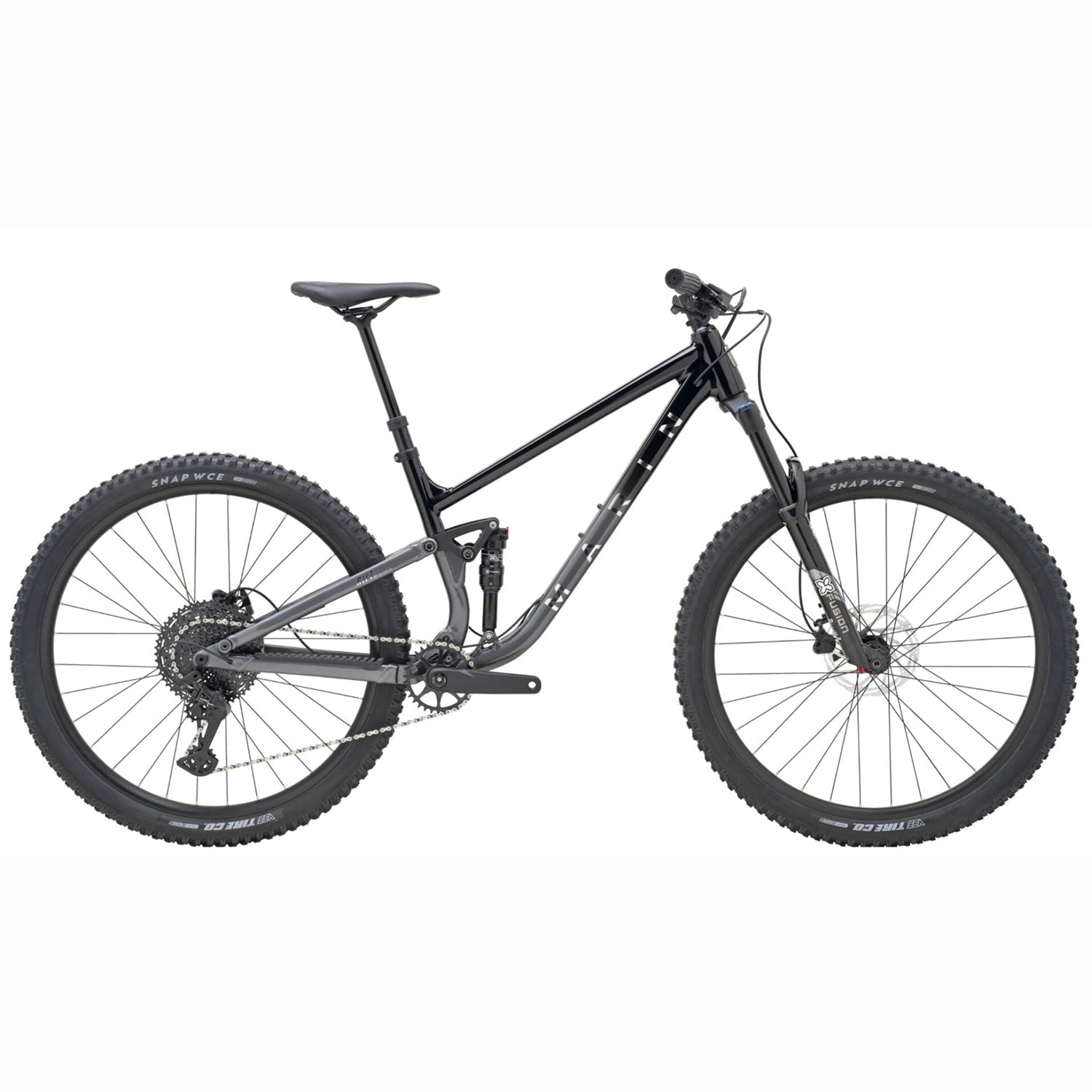

Marin Rift Zone 1 Full Suspension Mountain Bike
Marin Rift Zone 1 Full Suspension Mountain Bike
Feel the Rifty Love! Marin's take on the ultimate do-it-all trail bike, the Marin Rift Zone is made to party, whatever your jam might be. Your ideal partner for everything from all-day epics, to local shred laps to big mountain adventures, the Rifty is Made For Fun.
The Rift Zone features 130mm of rear travel, a lightweight aluminium frame and Marin's super-plush MultiTrac suspension platform for endless good times on the trails. Available with either 27.5" or 29" wheels, depending on frame size, ensuring the perfect balance of playfulness and efficiency.
The Marin Rift Zone 1 is your gateway to the Rifty family, made to push the limits of your riding but not your bank balance. It's built with super reliable X-Fusion suspension, an X-Fusion Manic dropper post, grippy Vee Crown Gem tires, plenty of Shimano and a hand-picked selection of favourite Marin components.
SERIES 3 ALUMINIUM FRAME
Rift Zone alloy models feature Series 3 aluminium frames, with detailed forgings, highly manipulated tubes, and full internal cable routing with new braze-in ports, giving the rider a high feature and high-performing upgrade-worthy platform.
MULTITRAC SUSPENSION TECHNOLOGY
MultiTrac is an acclaimed suspension system, fine-tuned to have a balanced ride capable of absorbing big hits with an efficient pedalling platform. The rocker link provides a progressive leverage ratio for the rear shock for small bump sensitivity and the feeling of a long travel system on large drops and rocks. 30mm rear travel on all Rift Zone models.
MODERN TRAIL GEO
Trail geometry with 430mm chainstays, low bottom bracket, long top tube, and a slack 65.5° head angle make for a playful yet confidence-inspiring bike.
INTERNAL ROUTING
Rift Zone Alloy models sport full internal cable/hose routing in the front triangle, and all-new brazed-in cable ports, providing a clean and rattle free cable set up.
ENHANCED CHAINSTAY/SEATSTAY PROTECTION
Rift Zone models have prominent chainstay and seat stay protectors for a quiet ride that also protects the paint finish.
| Frame | Series 3 6061 Aluminum, 130mm Travel, MultiTrac Suspension Platform, 141 Boost Spacing (upgradable to 148x12), 73mm Threaded BB w/ ISCG05 Tabs |
|---|---|
| Rear shock | X-Fusion O2 Pro R, Custom Tune, 210x55mm, M8x25mm Hardware Top and Bottom |
| Fork | X-Fusion Slide (29") or Sweep (27.5") Boost RC, 140mm Travel, Compression and Rebound Adjustment, 44mm Offset |
| Headset | FSA No 57E, Semi-Sealed Cartridge Bearings, 1 1/8" x 1 1/2” |
| Shifters | Shimano Deore, 11-Speed, SL-5100R |
| Rear derailleur | Shimano Deore, 11-Speed, SGS |
| Chainset | Marin Forged Alloy, Integrated Steel 32T Narrow Wide Chainring, Boost Spacing |
| Bottom bracket | External Sealed Cartridge Bearing |
| Chain | KMC X-11 Silver and Black |
| Cassette | Sunrace, 11-Speed, 11-51T, ED Black |
| Wheelset | Marin Aluminum Double Wall, 29mm Inner, Pinned Joint, Disc Specific, Tubeless Compatible |
| Hubs | Shimano HB-MT200B, 141 QR, Centerlock, Standard Freehub Body Shimano HF-MT400B, 110x15mm, Centerlock |
| Spokes | 14g Black Stainless Steel |
| Tyres | Vee Tire Co. Snap WCE 2.35", Top 40 Compound, GXE Core, 90 TPI, Tubeless Compatible |
| Brakes | Tektro HD-M280 Hydraulic, 180mm Rotor |
| Handlebars | Marin Mini-Riser, 6061 Double Butted Aluminum, 780mm Width, 28mm Rise, 5º Up, 9º Back |
| Grips | Marin MTN, Closed End |
| Stem | Marin 3D Forged Alloy, 35mm |
| Saddle | Marin Speed Concept |
| Seatpost | X-Fusion Manic, 1x Composite Remote, Size XS-S 150mm Travel, Size M-XL 170mm Travel, 30.9mm |
| Pedals | None - SHOP PEDALS HERE |
