- Trek Rail+ 5 Gen 5 Full Suspension Electric Mountain Bike 2025
Trek

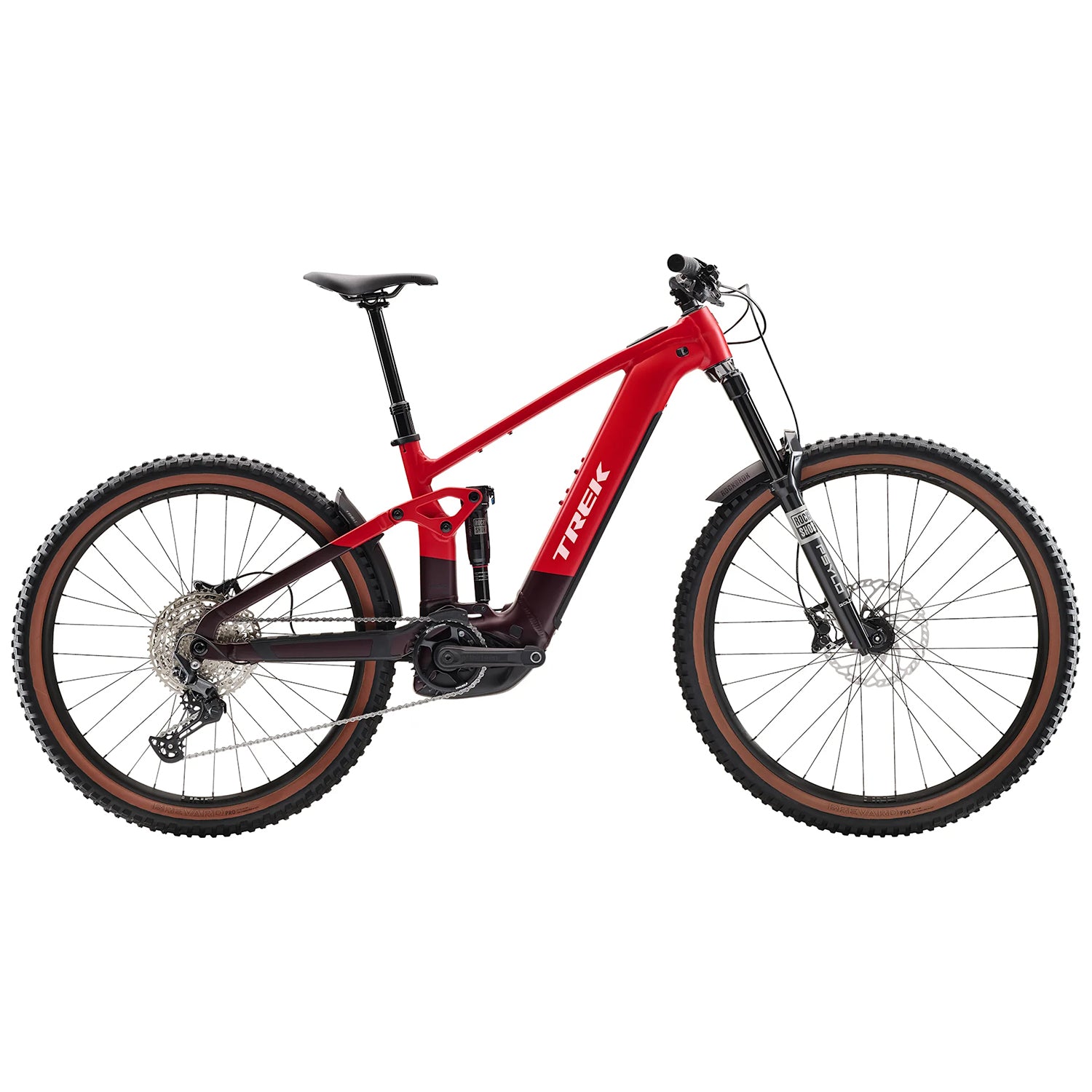

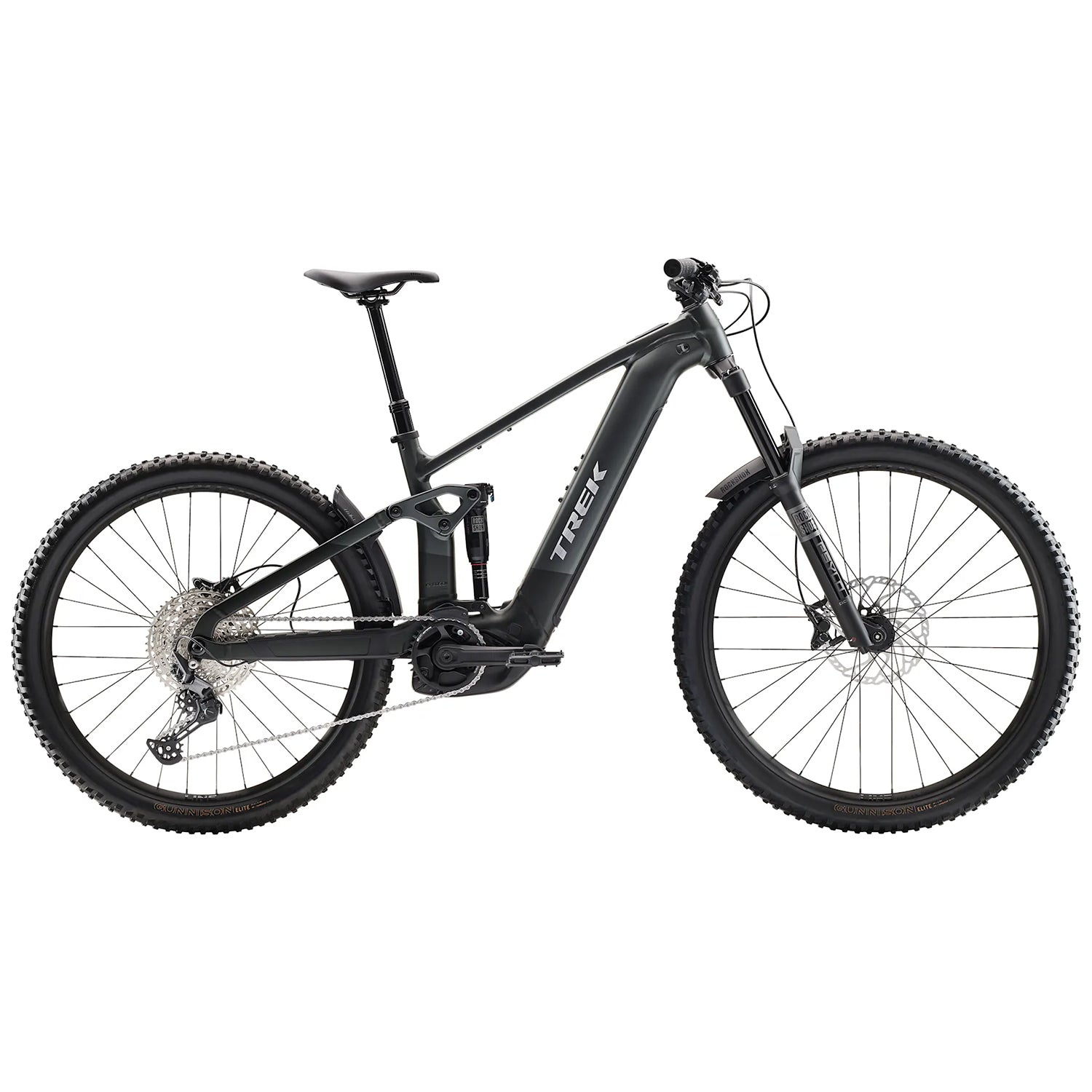

Trek Rail+ 5 Gen 5 Full Suspension Electric Mountain Bike 2025
Trek Rail+ 5 Gen 5 Full Suspension Electric Mountain Bike 2025
The Rail+ 5 is an alloy enduro e-bike that delivers huge value for big adventures. It comes equipped with a Bosch Performance CX drive system with full power for crushing laps and big climbs while its massive battery takes you the distance. 160 mm of front and rear travel make Rail+ super capable in the rough and rowdy, and adjustable geometry lets you customise it for how and where you ride.
It's right for you if...
You want a full-power e-MTB that doesn't back down from anything. Value is important to you, and you want a robust alloy frame that holds up to rowdy terrain with workhorse components you can upgrade over time.
The tech you get
An Alpha Platinum Aluminium frame with a Bosch Performance CX system (85 Nm, 250 W) and 800 Wh Removable Integrated Battery 2.0. A 160 mm RockShox 35 Gold RL fork with DebonAir spring, Motion Control damper and a lockout, and a RockShox Deluxe Select+ RT shock. All topped off with a Shimano Deore 12-speed drivetrain, dropper post, Tubeless Ready Bontrager Line wheels and 4-piston hydraulic disc brakes.
Why you'll love it
- The Rail+ delivers adventure with plenty of travel and power for getting after epic rides that take you peak to peak or chasing endless enduro laps
- The powerful Bosch Performance CX system goes full gas up steep climbs and keeps you cool for the descents
- You can tweak your geometry and suspension leverage rate for how you ride, and add in adjustable angle headset cups (sold separately) for even more adjustability
- The massive 800 Wh RIB 2.0 battery supports you for big miles and can be easily removed for travel or storage
- It's compatible with the Bosch PowerMore booster battery for going even further on epic adventures
The final word
Big value. Big adventure. The Rail+5 is an enduro e-bike built to take you far beyond without breaking the bank. It delivers with a robust alloy frame with adjustable geometry, a massive battery, Bosch motor you can trust and parts that pack in value.
Motor | Bosch Performance Line CX, 20 mph (25 km/h in Europe) |
Battery |
|
Controller | Bosch System Controller BRC3100, smart system |
Charger | Bosch standard 2A, 230V, smart system |
Shifters | |
Front derailleur | |
Rear derailleur | |
Chainset | |
Bottom bracket | |
Chain | |
Cassette | |
Wheelset | |
Hubs | |
Spokes | |
Tyres | |
Brakes | |
Handlebars | |
Grips | |
Stem | |
Saddle | |
Seatpost | |
Pedals | None - SHOP PEDALS HERE |
Frame | Alpha Platinum Aluminium, Removable Integrated Battery (RIB 2.0), tapered head tube, guided internal routing, Control Freak internal routing, Motor Armour, Boost148, 12 mm thru axle, 160 mm travel |
Rear shock | RockShox Deluxe Select+ RT, 205 mm x 65mm |
Fork | RockShox Psylo Gold RC, DebonAir spring, Isolator RC damper, tapered steerer, 44 mm offset, Boost 110, 15 mm Maxle Stealth, 160 mm travel |
Headset | |
Shifters | Shimano Deore 12-Speed |
Front derailleur | |
Rear derailleur | Shimano Deore 12-Speed |
Chainset | Shimano Deore 12-Speed |
Bottom bracket | |
Chain | |
Cassette | |
Wheelset | |
Hubs | Bontrager sealed bearing, alloy axle, 6-bolt, Boost110, 15 mm thru axle Bontrager alloy, sealed bearing, 6-bolt, Shimano MicroSpline freehub, Boost148, 12 mm thru axle |
Tyres | Bontrager Gunnison Elite XR, Tubeless Ready, wire bead, 60 tpi, 27.5x2.40" |
Brakes | Shimano 4-piston hydraulic disc, MT4100 lever, MT420 calliper, Shimano RT66, 6-bolt, 203 mm |
Handlebars | Bontrager alloy, 31.8 mm, 15 mm rise, 750 mm width |
Grips | Bontrager XR Trail Comp, nylon lock-on |
Stem | Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 50 mm length |
Saddle | Bontrager Verse P3, steel rails |
Seatpost | TranzX JD-YSI34, 170mm travel, internal routing, 34.9 mm (size small has 100mm travel) |
Pedals | None - SHOP PEDALS HERE |
