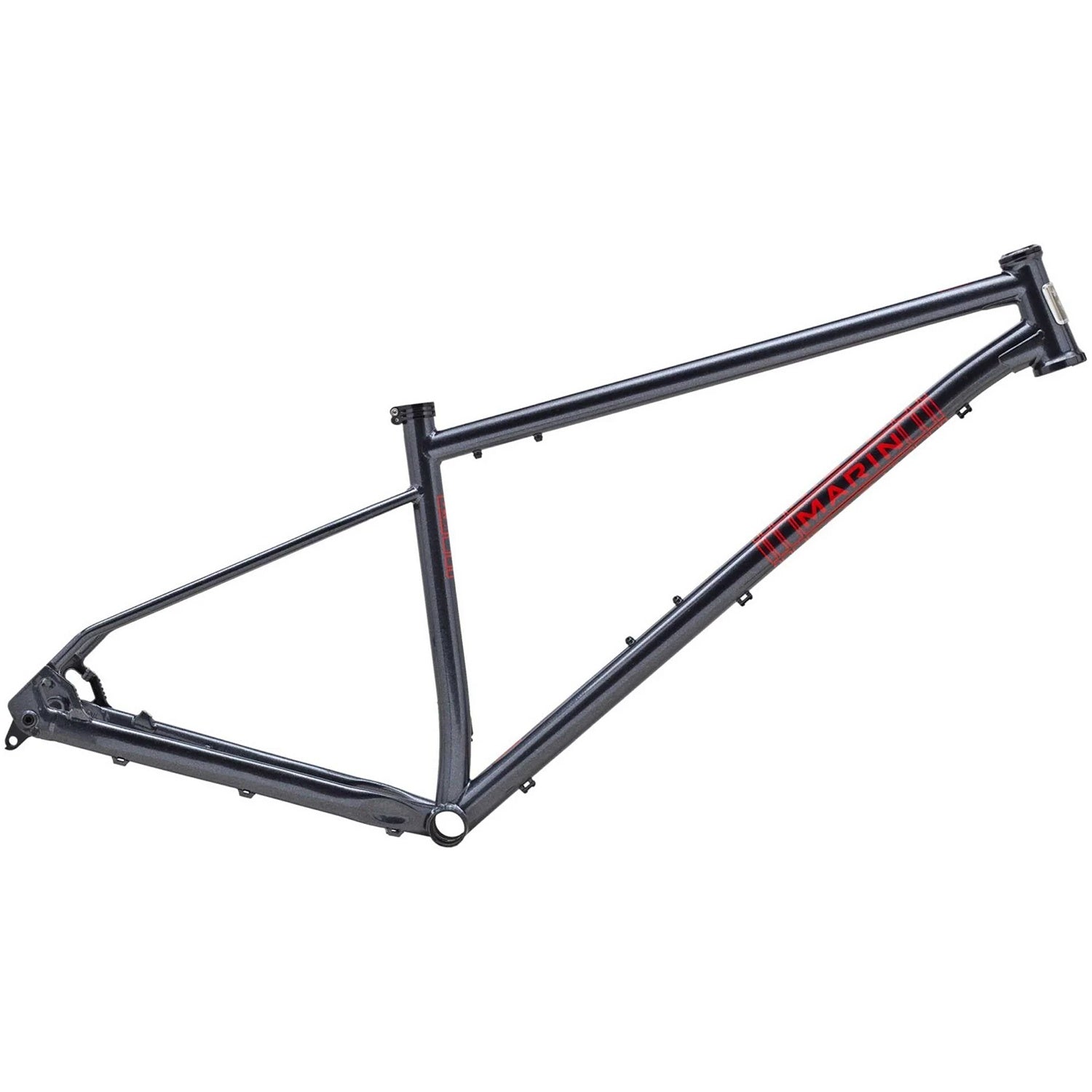

Marin El Roy MTB Frame Kit 2022
Marin El Roy MTB Frame Kit 2022
ENDURO | SLASHING BERMS | ALL TRAILS, ALL CONDITIONS
The El Roy is the ultimate aggressive steel hardtail that’ll get you to the top, and then really shine on the way down, with a spicy mix of progressive geometry and supple steel.
SERIES 3 CRMO FRAME - The El Roy is built on a stout Series 3 4130 CrMo frame with investment cast dropouts, integrated drop-in headset, external brake and hose mounts, all fully ED coated for longevity.
GEOMETRY - Gravity-oriented geometry, with a 63° headtube and 78° seattube angles, 44mm fork offset, and long reach measurements (Regular = 480mm, Grande = 510mm).
TWO SIZES - Regular and Grande frame sizes fit a wide range of riders, with included 150mm (Regular) or 170mm (Grande) dropper posts.
INVESTMENT CAST DROPOUTS - Custom investment cast CrMo 148x12mm Boost thru-axle drop outs provide strength and stiffness where you need it most.
| Frame | Series 3 Double Butted and Formed CrMo tubing, Integrated Drop-In Headset, External Rear Derailleur and Brake Housing, Internal Dropper Post Routing, 148x12mm Boost Rear Spacing, PM Brake Mounts |
|---|---|
| Headset | FSA Orbit 40 No.42 ACB |
| Extras | Seat Clamp 33.3mm OD Bolt-On Thru-Axle |
