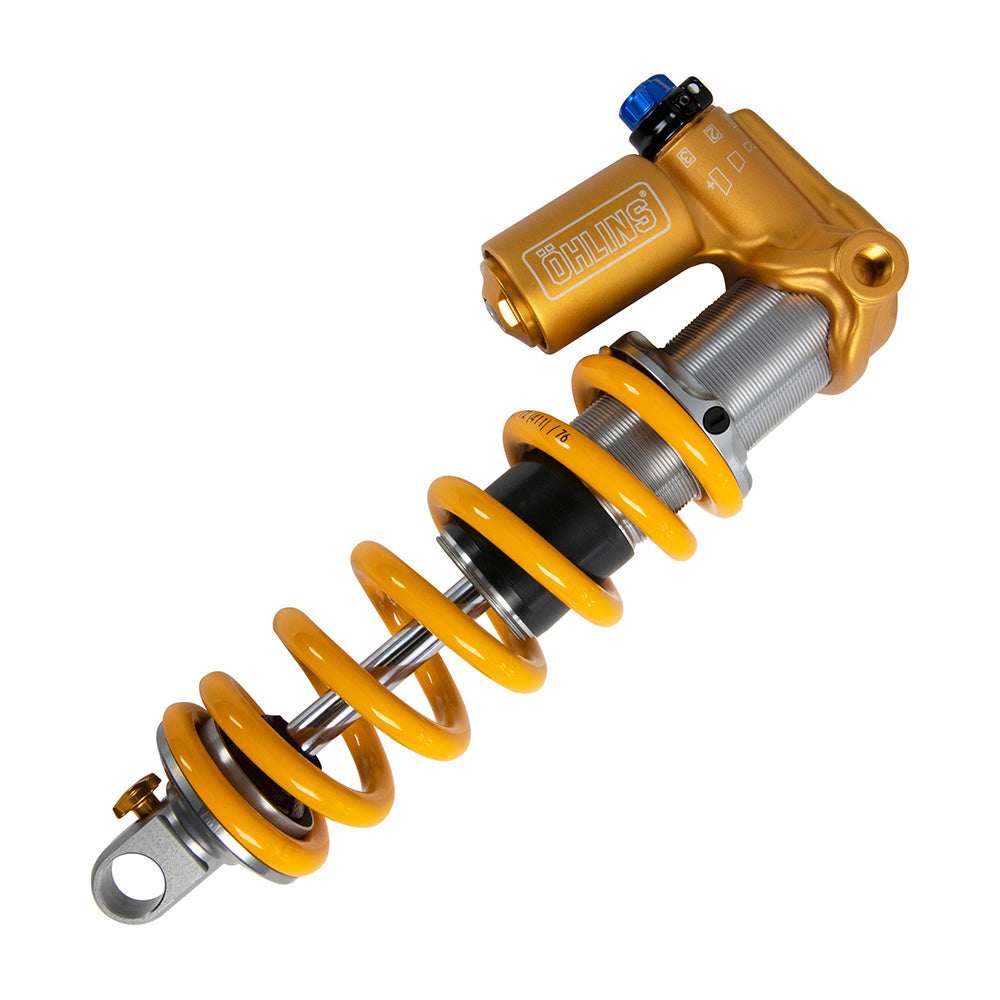

Ohlins TTX22M.2 Coil Shock Trunnion Piggyback 205x65mm - No Spring
Ohlins TTX22M.2 Coil Shock Trunnion Piggyback 205x65mm - No Spring
Please note: this product does not include the shock spring.
Experience the next generation of big-hit suspension technology. With better end stroke control and an improved adjustment range, the TTX22m.2 rear shock builds on the supreme levels of performance, traction, and control that made the original TTX22 the go-to shock choice for professional gravity riders.
Improved bottom out performance
The new TTX22m.2 benefits from improved bottom out performance, courtesy of a newly designed bump rubber, in addition to the cup it sits in. This significantly improves mid- to end-stroke control as a result of earlier engagement and more consistent, predictable support.
The new bump rubber, in combination with the cup it sits in, acts as a second spring, loading and releasing energy to ensure the rider returns back into position after a heavy compression in a quick, controlled manner. Overall, the spring curve of the shock will improve performance for less progressive bikes that require more end-stroke support. The new design also boasts the added effect of lowering the risk for a hard bottom out that could impact handling.
Easier stroke adjustment
Changing both spring and stroke is an easy operation on the TTX22m.2. This is achieved by adding or removing 2.5mm washers under the bump rubber cup. No special tools are required, nor is shock disassembly needed to perform the operation. The spring, meanwhile, can be changed by simply loosening the preload and removing the spring seat lock ring. The spring can then slide over the end eye, making it easy to optimize shock performance and sag.
Wider adjustment range
The updated shock's blue trail high-speed compression valve now provides a wider adjustment range. Importantly, this gives the rider more distinct alternatives to choose between when customizing setup. This new wider range also adds support in the pedal mode, making the bike a more efficient climber. The golden DH compression valve retains the same adjustment range as the original, which is already perfectly optimized for gravity riding.
Features:
- Öhlins TTX technology
- Specifically designed for trail and downhill use
- Blue trail valve
- Trunnion piggyback cylinder head
- Available in metric lengths/strokes
- 205 x 65 mm
- Possible to adjust stroke with the three 2.5 mm spacers included in the box
- Suitable for our lightweight springs with 4 Nm/23 lbs increments
- External, 3 level high-speed compression adjustment
- External, 16 click low-speed compression adjustment rebound damping adjustment
- External, 7 click rebound adjustment
