Pinnd E-Bike Cranks - Bosch / Isis

Name: Pinnd E-Bike Cranks - Bosch / Isis
Brand: PINND
SKU: shopify_GB_8508386312423_47927504634087
Price: 155.00 GBP
Availability: OutOfStock

Made in Scotland from 7075 T651 anodised aluminium and certified for Enduro (Cat 4) use, the PINND E-Bike Cranks are available in 145, 155 and 165mm lengths.

Optimised for Bosch Performance Line CX drive units, they are also compatible with most e-bike systems using the ISIS spline interface.

£155.00

Check your eligibility

Fast check - won't affect your credit rating.

Representative Example: A loan of £2,346.00 over 60 months will cost you £49.06 per month at a representative 9.9% APR. The total cost after 60 months is £2,934.02, which includes £588.02 interest at 9.9% fixed and a £0 fee. The total amount of credit is £2,894.92.

Length

Colour

Please get in touch if we don't have what you need. There's sometimes a chance we can get hold of specific items.

Notify Me When Available

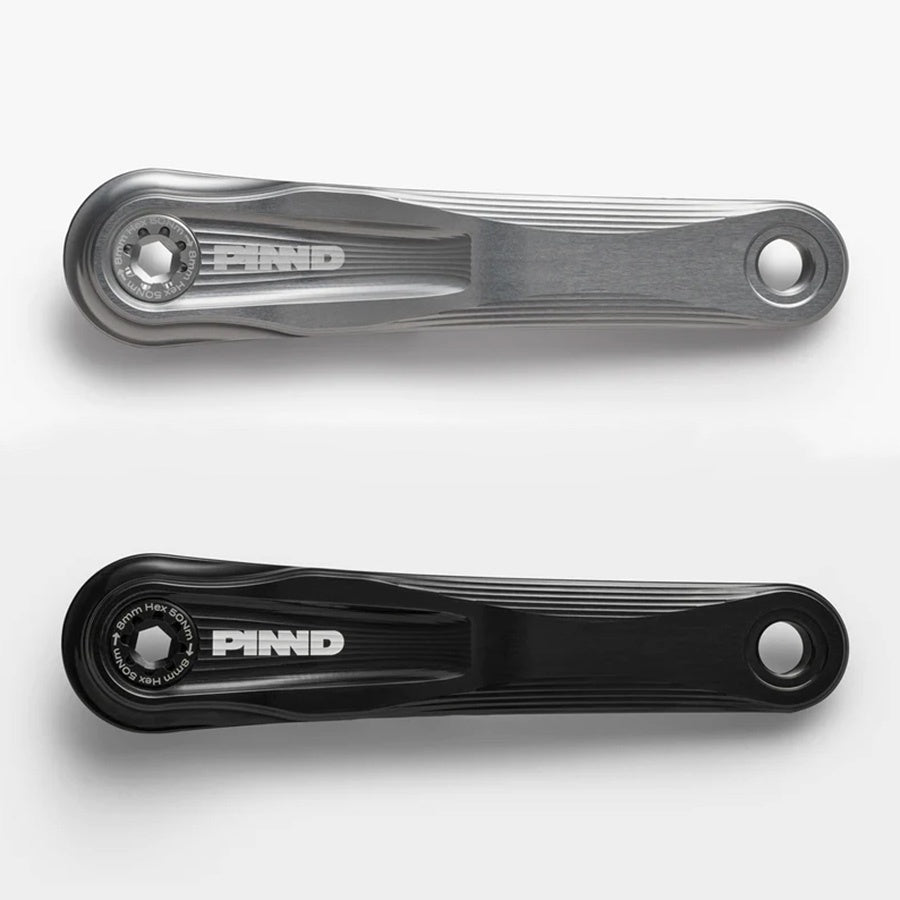

Pinnd E-Bike Cranks

Made in Scotland from 7075 T651 anodised aluminium and certified for Enduro (Cat 4) use, the PINND E-Bike Cranks are available in 145, 155 and 165mm lengths.

Optimised for Bosch Performance Line CX drive units, they are also compatible with most e-bike systems using the ISIS spline interface.

Features:

Offering shorter lengths for better ground clearance
Self extracting design for ease of fitting and removal

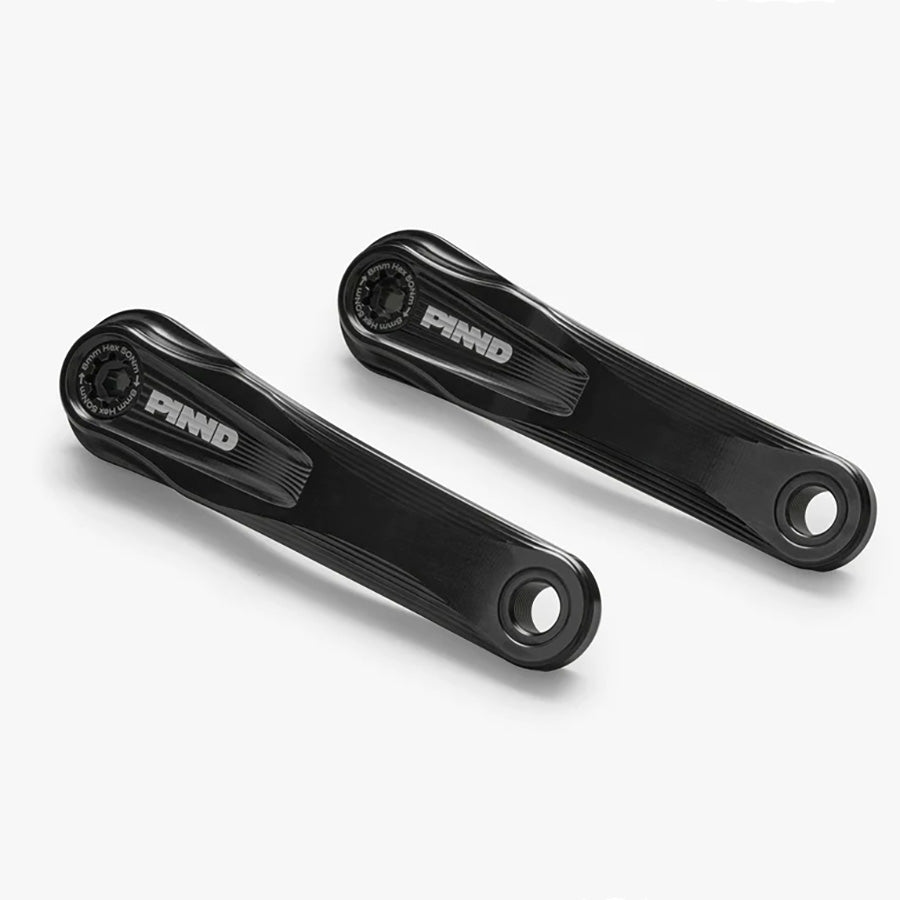

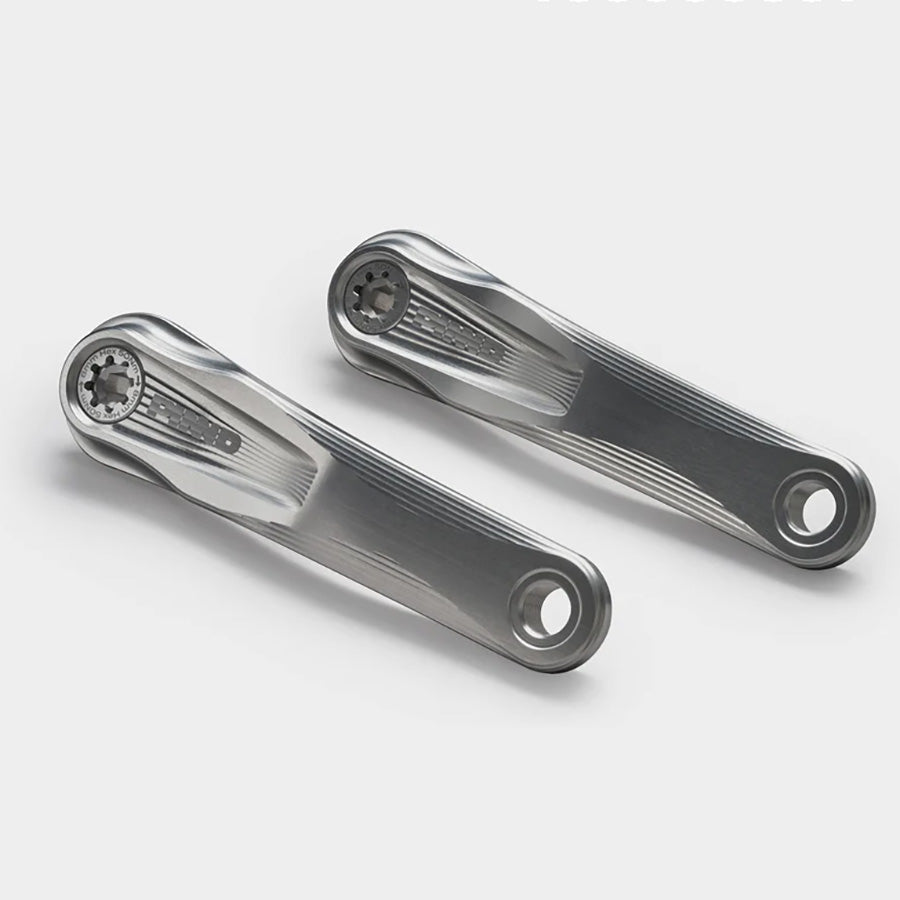

Available in Black or Natural anodised finish - includes matching Bolt and Captive Nut in same colour as cranks
165mm arms = 496g
155mm arms = 472g
145mm arms = 450g

PINND E-BIKE ISIS cranks are compatible with most e-bike systems using the ISIS spline interface. For example, Bosch systems (Gen 2/4, excluding Gen 3 mini-ISIS Bosch spline shaft), Yamaha PW-X systems and Brose systems.

With Bosch systems the Q-Factor is 186mm, with Yamaha 177mm

For Brose systems the Q-Factor is 200mm

IMPORTANT NOTE these are not optimised for Specialized bikes. Specialized with Brose drive units have a 4mm offset. The PINND ISIS interface cranks are not offset so they will not be centred with the frame.

CUSTOMISE YOUR CRANKS

Choose coloured CRANK BOLTS and CAPTIVE NUTS to customise your cranks. Sold as singles so you can get wild.

NOTE - you only need to order these if you want to swap out the standard Black or Natural that ship with cranks as standard.
