Marin Alpine Trail E2 Full Suspension Electric Mountain Bike

Shimano Steps EP801 motor
630Wh internal battery
Fox 38 Performance Elite 160mm travel fork
Fox DHX2 Performance Elite shock
Tubeless ready wheels & tyres
X-Fusion Manic dropper post

ON SALE

£4,200.00 ~~£5,199.00~~

Check your eligibility

Fast check - won't affect your credit rating.

Representative Example: A loan of £2,346.00 over 60 months will cost you £49.06 per month at a representative 9.9% APR. The total cost after 60 months is £2,934.02, which includes £588.02 interest at 9.9% fixed and a £0 fee. The total amount of credit is £2,894.92.

Size

Quantity

In stock and ready to ship

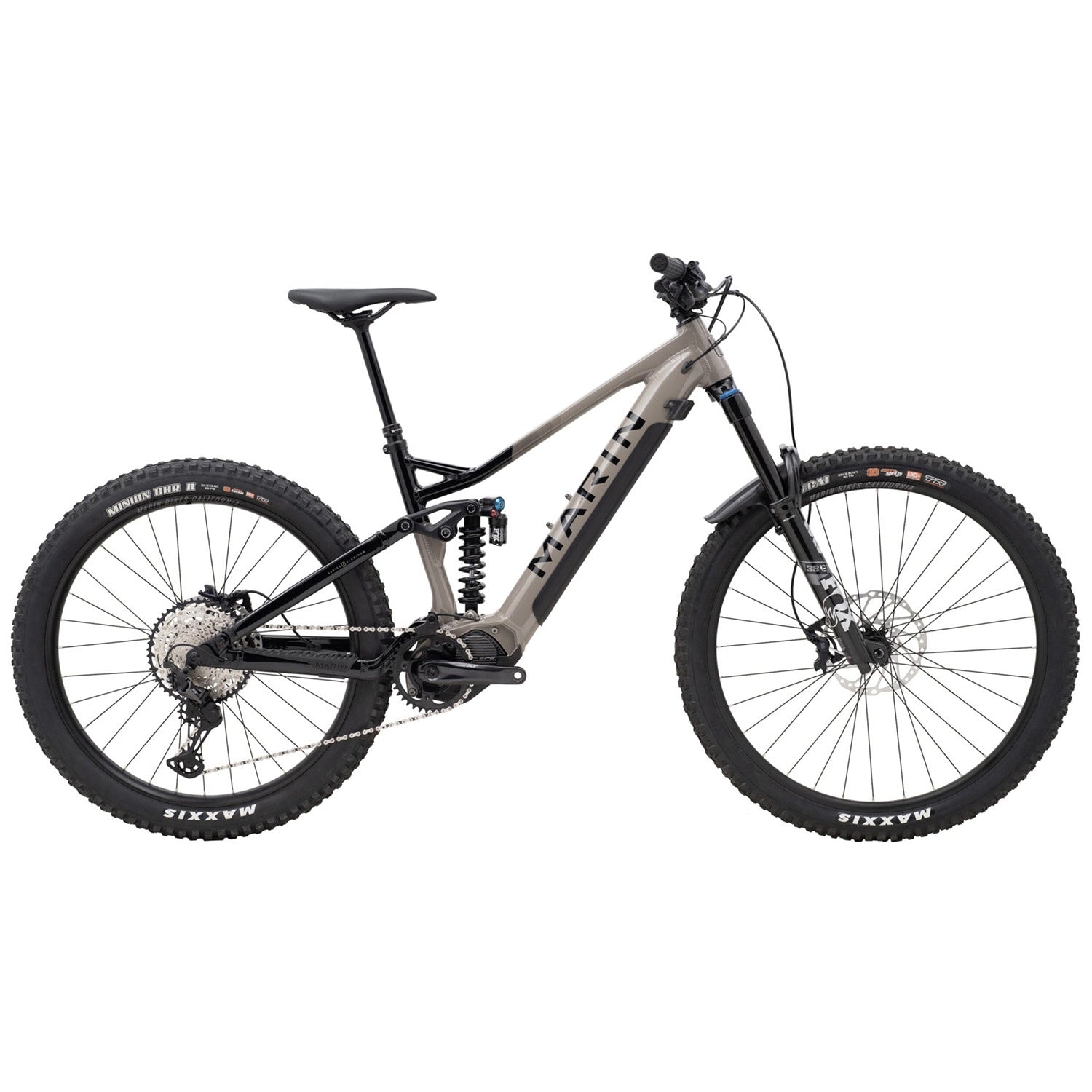

Marin Alpine Trail E2 Full Suspension Electric Mountain Bike

The Alpine Trail E2 is Marin's top-end Alpine Trail, ready to tame the roughest and toughest of trails. For the best of the bunch, Marin have packed in the big-dog Shimano STEPs EP801 system and a long-lasting 630Wh battery, Fox 38/Float DHX2 Performance Elite suspension and a blend of Shimano XT and SLX 12-speed, including powerful TRP 4-piston brakes.

Key upgrades from Alpine Trail E1:

Shimano STEPS EP801 system
Fox 38/Float DHX2 Performance Elite suspension
Shimano XT/SLX 12-speed drivetrain w/10-51t cassette
TRP DH-R Evo 4-piston disc brakes

SERIES 4 ALUMINUM FRAME

Alpine Trail E models are built upon Marin's Series 4 aluminum frames, with detailed forgings, highly manipulated tubes, and full internal cable routing, giving the rider the highest-end alloy frame that Marin offers, compatible with modern coil or air shocks.

MULTITRAC SUSPENSION

The Alpine Trail E features the same great, proven MultiTrac suspension technology, but optimized for the Shimano STEPS system. With this combination there is no need for platform or lockout levers, just get on and blast up the hills.

MIXED WHEEL SIZES

29” front and 27.5”+ rear wheel sizes are the ideal combination for the Alpine Trail E, with larger front wheel easily rolling over most any trail obstacle and offering the best cornering traction, while the burly 27.5” x 2.8” rear setup adds playfulness and enhances acceleration and braking traction.

DROPPER POST OPTIMIZED

The modern day trail rider needs their saddle out of the way at times, while low-slung frames require longer length posts. On the Alpine Trail E, seat tube lengths have been minimized, along with minimum insertion depths, so that riders of all sizes can get the proper extension needed.

Motor	Shimano Steps EP801 Drive Unit, 250W, 85Nm
Battery	BT-8036, Internal 630Wh
Display	Shimano SC-E600
Switch	SW-EN600L Left Hand Switch for Assist Mode Change
Extras	Shimano Battery Charger EC-E6002, Shimano CS-EN800 Chainguide, CushCore, 29" Pro Front, Plus Rear, with CushCore Valve Stems, Marin Tire Sealant 250ml, Squeeze Top with Valve Core Removal Tool Cap

Frame	Series 4 Alloy Frame, 150mm MultiTrac Suspension, Integrated Battery/Charging Port, 148mm Rear Thru-Axle, Built-in Rear Speed Sensor
Rear shock	Fox DHX2, Performance Elite, Low Speed Compression and Rebound Adjustment, 205x65mm, Trunnion Upper Mount, 25mmxM8 Lower Mount, S/M Spring Rate = 350lb, L/XL Spring Rate = 450lb
Fork	Fox 38 Performance Elite, 160mm travel, 29" , 110x15mm Boost Kabolt Thru-Axle, 44mm Offset, Integrated Fox Fender
Headset	FSA No 57, Sealed Cartridge Bearings, 1 1/8" x 1 1/2”
Shifters	Shimano SLX 12-Speed, I-Spec EV
Front derailleur	None
Rear derailleur	Shimano XT 12-Speed, SGS
Chainset	Shimano XT M8150, 160mm Length, 38t Chainring
Bottom bracket	/
Chain	KMC E12S, eMTB-Specific Chain
Cassette	SunRace 12-speed, 11-51
Wheelset	Front: Marin Aluminum Double Wall, 29" Diameter, 32mm Inner Rim Width, Sleeved Joint, Disc Specific, Tubeless Compatible; Rear: Marin Aluminum Double Wall, 27.5" Diameter, 38mm Inner Rim Width, Sleeved Joint, Disc Specific, Tubeless Compatible
Hubs	Forged Aluminum, 148x12mm, Disc, 32H
Spokes	14g Black Stainless Steel
Tyres	Front: Vee Tire Co. Attack HPL, 29x2.5", Top 40 Tubeless Compatible, Rear: Vee Tire Co. Crown Gem, 27.5x2.8”, TACKEE Compound, Tubeless Compatible
Brakes	TRP DH-R Evo, 4-Piston Hydraulic Disc, Metallic Pads, 203mm Rotor w/ Speed Sensor
Handlebars	Marin Trail Bar, 35mm Clamp, 7000 Alloy Bar, 800mm Length, 20mm Rise, 5 Degree Up, 8 Degree Back
Grips	Marin Grizzly Lock On
Stem	Marin CNC, 35mm Length, 35mm Bar Bore
Saddle	Marin eMTB Saddle
Seatpost	X-Fusion Manic, 1x Composite Remote, Size S 125mm Travel, Size M and L 150mm Travel, Size XL 170mm Travel, 30.9mm
Pedals	Marin MTB Plastic
