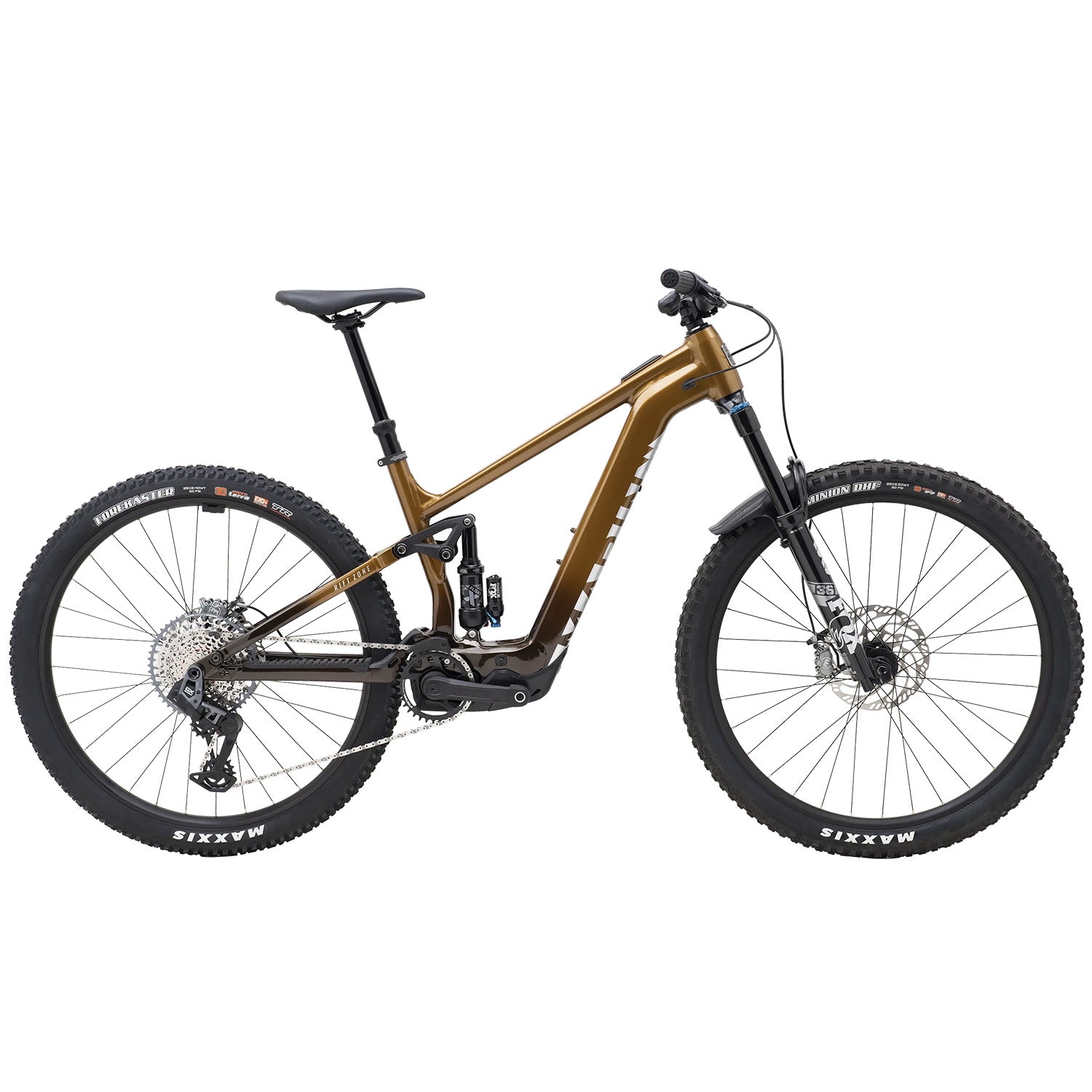

Marin Rift Zone EL XR Full Suspension Electric Mountain Bike 2025
Marin Rift Zone EL XR Full Suspension Electric Mountain Bike 2025
The all-new Rift Zone EL ("Electric Light") trail eMTBs take everything you love about the Rift Zone and repurposes it into bikes that share the capability of the full-powered versions but in lighter packages.
Made possible in part by Bosch's new lightweight Performance Line SX drive unit and CompactTube internal battery, the Rift Zone EL models deliver a decidedly playful ride with a power delivery so natural you might forget its an ebike. With all the benefits without the bulk, the Rift Zone EL is the perfect platform for those who don't require the full range and power output of more traditional eMTBs.
The flagship Rift Zone EL XR is decked out with a gamut of high performance components, including the impressive Fox 36/Float X Performance Elite suspension combo, SRAM's GX AXS wireless T-type transmission drivetrain and Magura MT-7 4-piston brakes.
Key Upgrades from the Rift Zone EL 2:
- Fox 36 Performance Elite fork
- Fox Float X Performance Elite shock
- SRAM GX AXS T-Type drivetrain
- Magura MT7 4-Piston hydraulic disc brakes
Motor | Bosch Performance Line SX, 600W, 55Nm torque, 20MPH Top Assisted Speed |
Battery | Bosch CompactTube 400Wh Internal |
Display | Bosch BRC3100 Systems Controller |
Switch | Bosch BRC3300 Bluetooth Remote 22.2mm Clamp |
Extras | e*thirteen e*Spec Chainguide Bolt-On 12mm Thru-Axle, 174mm Length, 1.0 Thread Pitch, 16.5mm, Tapered Head, Bosch EB12.110.016; 2A Charger |
Range Charging Time | 15-55 miles (Based on Rider Weight, Terrain, Climate and Level of Assist Used), 6 Hours (estimated, under ideal conditions) |
Frame | All New Series 4 Alloy Lightweight E, 140mm MultiTrac Suspension, Integrated Battery/Charging Port, 148mm Rear Thru-Axle |
Rear shock | Fox Float X, Performance Elite, EVOL Air Spring, Climb Switch, Rebound Adjustment, Custom Tune, 210x55mm, 25xM8 Upper Mount, No Lower DU or Hardware |
Fork | Fox 36 Performance Elite, 150mm Travel, 29", 110x15 Kabolt, 44mm Offset |
Headset | FSA Custom, Adjustable HTA Design |
Shifters | SRAM AXS POD |
Rear derailleur | SRAM GX AXS T-Type |
Chainset | e*thirteen e*spec Plus, 160mm Length, 34T |
Chain | SRAM GX T-Type |
Cassette | SRAM CS-XS-1275 T-Type, 10-52T |
Wheelset | Marin Aluminum Double Wall, 29" Diameter, 32mm Inner Rim Width, Welded Joint, Disc Specific, Tubeless Compatible |
Hubs | Formula DCL-3482, 4 Sealed Bearings, 148x12, XD Driver, 6-Bolt, 32H Formula DC-711, 110x15, 6-Bolt, 32H |
Spokes | 14g Black Stainless Steel |
Tyres | Front: Maxxis Minion DHF, 29x2.4" MAXXGRIP, Tubeless ready, EXO+ Rear: Maxxis Forecaster 29x2.4", Tubeless Ready MAXX TERRA EXO+ |
Brakes | Magura MT7, 4-Piston Hydraulic Disc, E-Specific Pads, 203mm MDR Rotor |
Handlebars | Marin Trail, 35mm Clamp, 7000 Alloy Bar, 800mm Length, 20mm Rise, 5 Degree Up, 8 Degree Back |
Grips | Marin Grizzly Lock On |
Stem | Marin CNC, 35mm Length, 35mm Bar Bore |
Saddle | Marin Speed Concept |
Seatpost | PNW Loam Post with Range Lever, Size S 150mm Travel, Size M-L 170mm Travel, Size XL 200mm Travel, 34.9mm |
Pedals | Marin MTB Plastic |
