Trek Rail 9.9 CX Race Gen 4 Full Suspension Electric Mountain Bike 2023

Bosch Performance Line CX Race Edition motor
Bosch PowerTube 625Wh / 750Wh Battery
Shimano XTR 12-speed drive
RockShox ZEB Ultimate 160mm travel fork
RockShoz Super Deluxe shock
Bontrager Tubeless ready wheels & tyres
Bontrager Line Elite dropper post

ON SALE

£9,723.86 ~~£12,950.00~~

Check your eligibility

Fast check - won't affect your credit rating.

Representative Example: A loan of £2,346.00 over 60 months will cost you £49.06 per month at a representative 9.9% APR. The total cost after 60 months is £2,934.02, which includes £588.02 interest at 9.9% fixed and a £0 fee. The total amount of credit is £2,894.92.

Size

Colour

Quantity

In stock and ready to ship

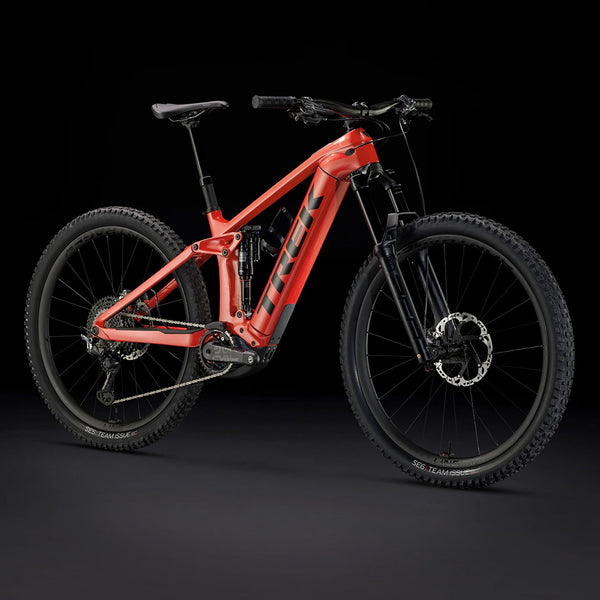

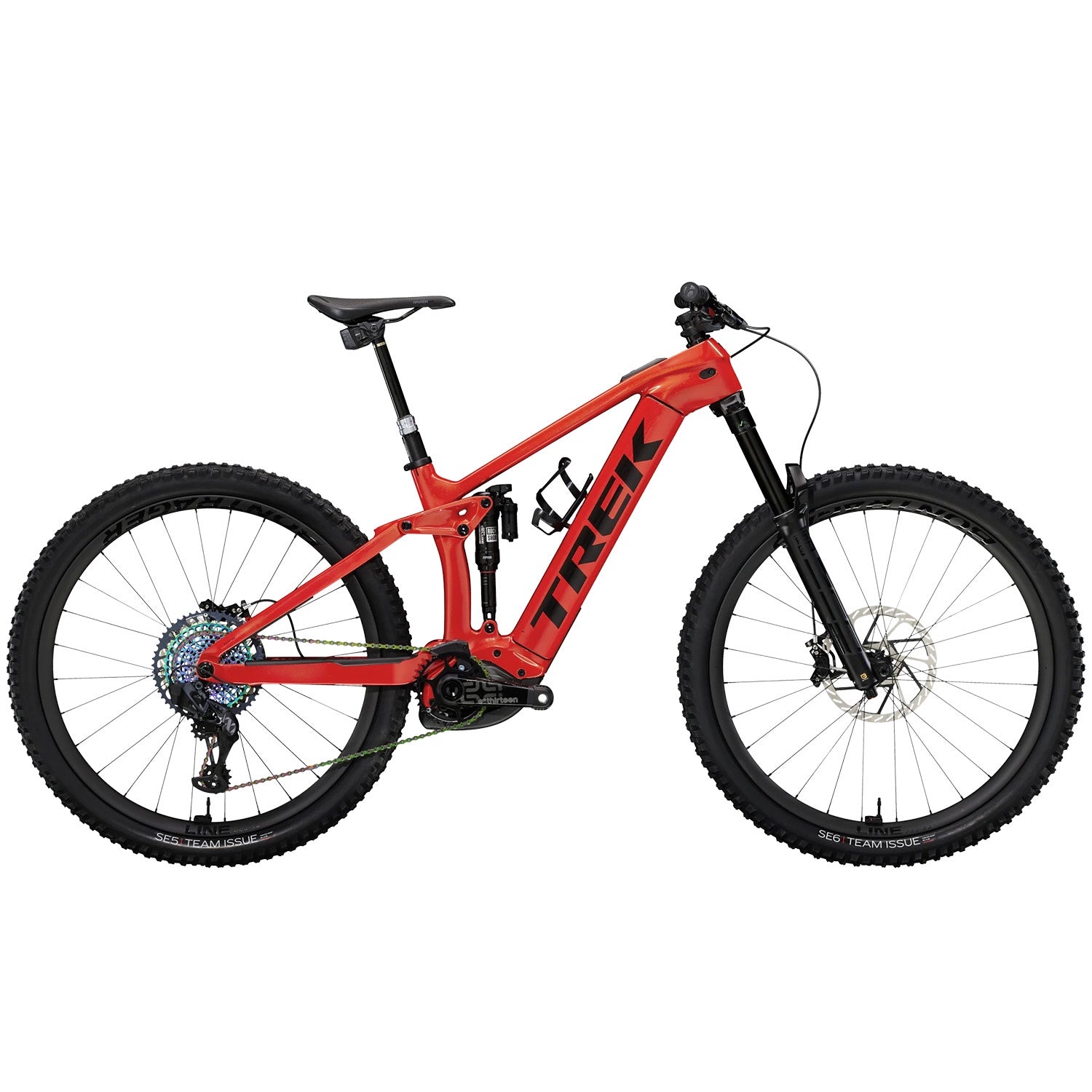

Trek Rail 9.9 CX Race Gen 4 Full Suspension Electric Mountain Bike 2023

The Rail 9.9 CXR is a race-ready long-travel e-bike that's ready to accelerate to the full right off the the starting line. It features Trek's best carbon frame, smooth RockShox suspension and top-tier Shimano XTR drivetrain. But the real show stealer on this powerhouse is the limited-edition Bosch Performance Line CXR motor that accelerates faster and offers sustained power for ripping through rock gardens without pedalling. It's equipped with an extra-long range battery and smart system, plus the new Mini Remote and System Controller display that sits flush with the top tube and pairs with the eBike Flow app to give you activity tracking, navigation and Bluetooth connectivity.

It's right for you if...

You want seriously fast acceleration and the best long-travel e-MTB you can find. Components matter to you, and you want the most adjustability, smoothest performance, longest range and most high-tech assist you can get. You love customisation and want all of the cool features of Bosch's smart system.

The tech you get

An upgraded OCLV Mountain Carbon frame with longer reach and oversized head tube and seat tube for maximum strength. An extra-long-range 750 Wh battery, ultra-adjustable RockShox ZEB Ultimate fork, RockShox Super Deluxe Ultimate Thru Shaft shock, ultra-responsive Shimano XTR 1x12 drivetrain and burly but light carbon wheels. Bosch's new limited-edition Performance Line CXR motor with faster acceleration and extended boost, a new Mini Remote, and Bluetooth® System Controller display that's integrated into the top tube.

Why you'll love it

Bosch's limited-edition CXR motor gives you more power out of the gate and keeps it sustained for ripping through rock gardens when you can't pedal
The new System Controller shows your currently-selected assist level and remaining battery level. Its neatly integrated into the top tube for maximum protection and a sleek look
Bosch’s new smart system gives you all the same power and responsiveness with a new discrete Mini Remote that’s streamlined with just the controls you need at your fingertips to toggle through assist levels or change to walk mode
TyreWiz and AirWiz let you confirm that your tyres, fork and shock are at the right pressure at a glance. No more getting the pump or gauge out just to check
The new frame is extra stout with a 34.9 mm seat tube to accommodate more robust dropper posts, and an oversized head tube that works with burly e-MTB-optimised forks for less flex and more precise steering

Rail 9.9 CXR is all about power. It combines top-shelf tech with Bosch's ultra-fast accelerating, limited-edition, Performance Line CXR motor for cruising out of corners at top speed, and their biggest battery possible to power you, lap after lap. RockShox's best enduro fork, the super-refined shifting of XTR, an updated frame and AirWiz pressure monitoring come together to make it the full package for e-MTB racing.

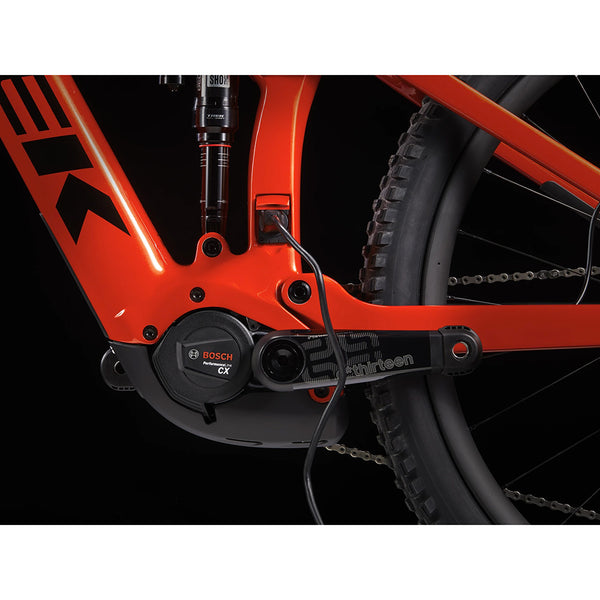

Motor	Bosch Performance Line CX Race Edition, smart system, magnesium motor body, 85 Nm, 20 mph or 32 km/h max assist (25 km/h max assist in EU and APAC)

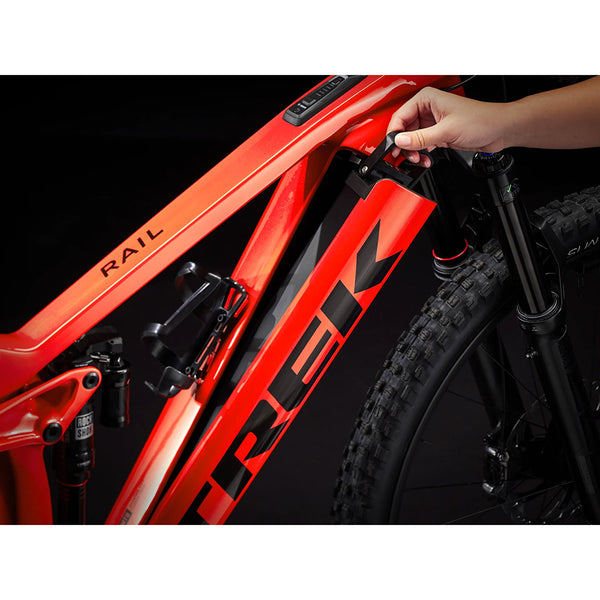

Battery	Size S: Bosch PowerTube 625Wh, smart system M,L,XL: Bosch PowerTube 750Wh, smart system
Charger	Bosch standard 4A, 230V, smart system
Controller	Bosch System Controller BRC3100, smart system

Frame	OCLV Mountain Carbon main frame, 1.8'' lower head tube, Bosch System Controller-compatible, Removable Integrated Battery (RIB), Knock Block 2.0, guided internal routing, 34.9 mm seat tube, magnesium rocker link, Motor Armour, Mino Link, ABP, Boost148, 12 mm thru-axle, 150 mm travel

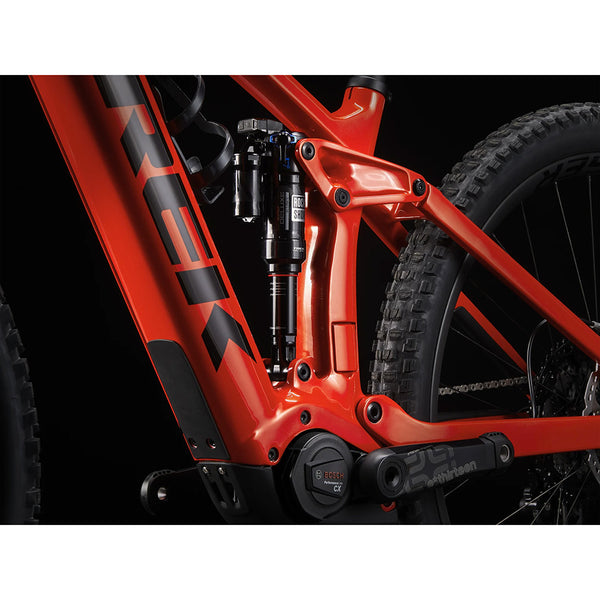

Rear shock	RockShox Super Deluxe Thru Shaft, AirWiz, 230 mm x 57.5 mm
Fork	RockShox ZEB Ultimate, AirWiz, DebonAir spring, Charger 3 RC2 damper, 1.8" oversized tapered steerer, eMTB optimised crown, 44 mm offset, Boost110, 15 mm Maxle Stealth, 160 mm travel
Headset
Shifters	Shimano XTR M9100, 12 speed
Front derailleur	None
Rear derailleur	Shimano XTR M9100, Shadow Plus, long cage, 51-T max cog
Chainset	Ethirteen Espec Race carbon, 34T, 165 mm length, Ethirteen Espec, 34T alloy, 55 mm chainline
Bottom bracket
Chain	Shimano Dura-Ace/XTR M9100, 12 speed
Cassette	Shimano XTR M9101, 10-51, 12-speed
Wheelset	Bontrager Line Pro 30, OCLV Mountain Carbon, Tubeless-Ready
Hubs	6-bolt, Boost110, 15 mm thru-axle Rapid Drive 108, 6-bolt, Shimano MicroSpline freehub, Boost 148, 12 mm thru axle
Spokes
Tyres	Bontrager SE5 Team Issue, Tubeless Ready, Core Strength sidewalls, aramid bead, 120 tpi, 29x2.50"
Brakes	Shimano XTR M9120 4-piston hydraulic disc, Shimano RT86, 6-bolt, 203 mm
Handlebars	Bontrager Line Pro, OCLV Carbon, 35 mm, 27.5 mm rise, 780 mm width
Grips	Bontrager XR Trail Elite, nylon lock-on
Stem	Bontrager Line Pro, 35 mm, Knock Block, Blendr-compatible, 0-degree, 45 mm length
Saddle	Bontrager Arvada, austenite rails, 138 mm width
Seatpost	Bontrager Line Elite Dropper, 100 mm travel, MaxFlow, internal routing, 34.9 mm
Pedals	Wellgo VPE-536
