Marin

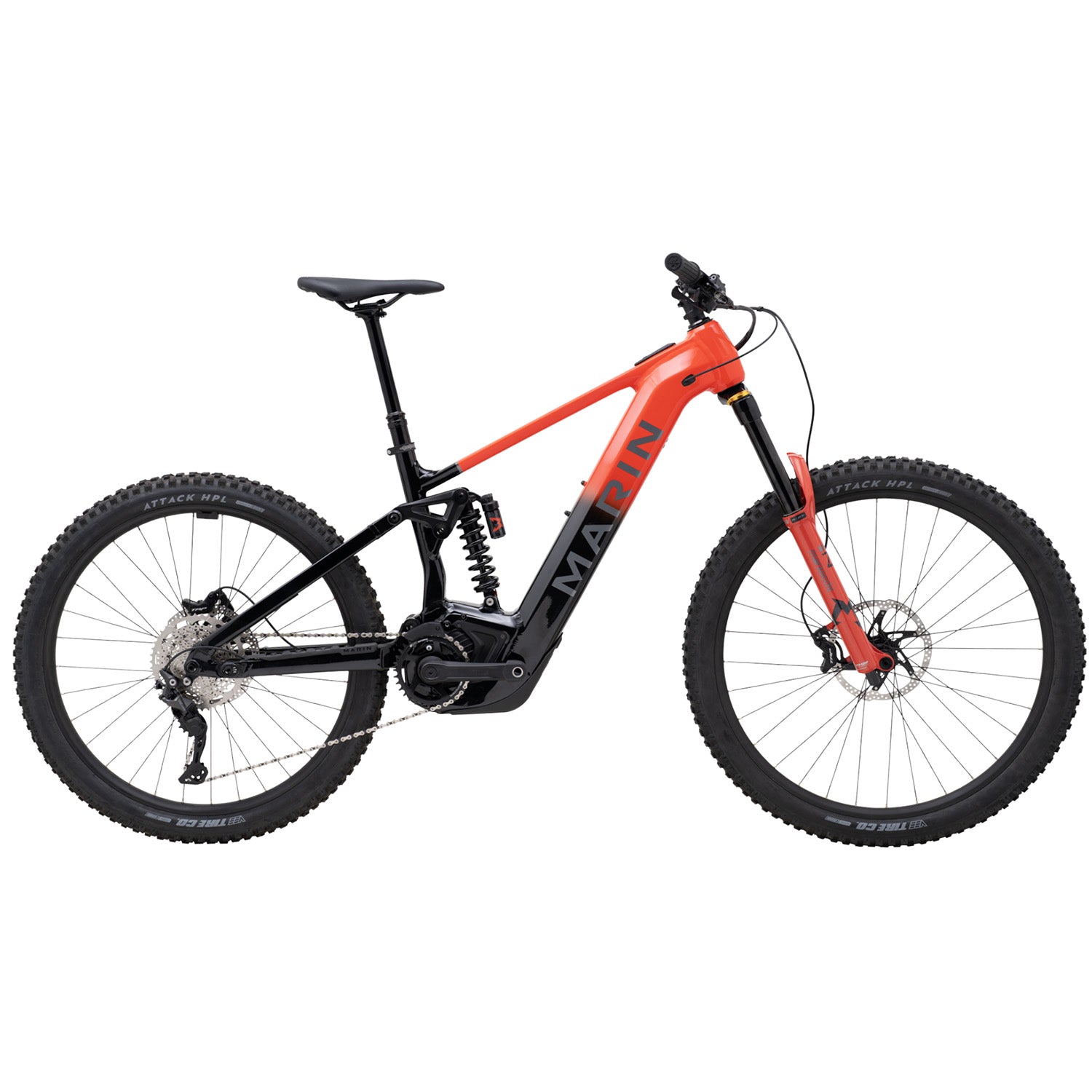

Marin Alpine Trail E1 Bosch Full Suspension Electric Mountain Bike

  • Bosch Performance Line CX motor
  • Bosch PowerTube 750Wh battery
  • Marzocchi Z1 170mm travel fork
  • Marzocchi CR Coil shock
  • Shimano CUES 10-Speed drive
  • TRP Slate EVO disc brakes
  • TranzX dropper post

ON SALE

£3,949.00 £5,495.00

Check your eligibility

Fast check - won't affect your credit rating.

Representative Example: A loan of £2,346.00 over 60 months will cost you £49.06 per month at a representative 9.9% APR. The total cost after 60 months is £2,934.02, which includes £588.02 interest at 9.9% fixed and a £0 fee. The total amount of credit is £2,894.92.

Please get in touch if we don't have what you need. There's sometimes a chance we can get hold of specific items.

Pre-order

Delivery Dates TBC

In stock and ready to ship

Buy now, pay later



Marin Alpine Trail E1 Bosch Full Suspension Electric Mountain Bike

The all-new Alpine Trail E (Bosch) is Marin's biggest, baddest beast of a bike family. Moving one step beyond in capability from the Alpine Trail E models, the new Alpine Trial E Bosch eMTBs are constructed with all-new Series 4 aluminium MultiTrac 2 LT frames that feature significant upgrades for riders who challenge themselves with the steepest, most technical terrain, as well as those who require the maximum in range.

Marin have increased the travel by 10mm at both ends, now standing at 170mm (f) and 160mm (r), and relocated the pivots to the chainstays to deliver the suspension performance and tunability demanded by the longer travel. Riders have the ability to alter the head tube angle by +/- .75° by repositioning the lower headset cup while the bottom bracket height/chainstay length can be changed by the means of seatstay flip chips.

Bosch's Performance Line CX drive units twist out 85Nm of torque and are backed by large capacity 750Wh PowerTube batteries, nestled safely in the frame's downtube, giving you the largest battery in the Marin range for the biggest adventures.

The Alpine Trail E1 (Bosch) is smartly spec'd with choice Marzocchi suspension with a coil shock out back, Shimano's innovative CUES 10-speed drivetrain and Tektro's Slate EVO 4-piston brakes with 203mm x 2.3mm rotors for when you need to reel in the party.

SERIES 4 ALUMINUM FRAME

Alpine Trail E models are built upon Marin's Series 4 aluminium frames, with detailed forgings, highly manipulated tubes, and full internal cable routing, giving the rider the highest-end alloy frame that Marin offers, compatible with modern coil or air shocks.

MULTITRAC SUSPENSION

Marin developed the all-new Series 4 aluminium frame in conjunction with the new human-powered Alpine Trail models and notable new features shared between the platforms. Firstly, travel has been increased by 10mm at both ends, now standing at 170mm (f) and 160mm (r), which is also an increase of 10mm beyond the current Shimano-equipped models. MultiTrac 2 LT (“Long Travel,” 150mm+), with rear pivots relocated from the seatstays to chainstays, makes its eMTB debut and delivers the suspension performance and tunability demanded of the longer travel. With MultiTrac 2 LT, the benefits of relocating the rear pivot points from the seatstay to the chainstay become apparent, as it reduces anti-rise, allowing for better chassis control while braking, more mid-stroke support, and better feel at bottom out. Furthermore, relocation of the pivots provides the added benefit of allowing for adjustable chainstay lengths and bottom bracket heights. Ultimately, it’s a better-riding, better-performing suspension system made possible by the new pivot placement.

The Shimano-equipped Alpine Trail E features the same great, proven MultiTrac suspension technology, but optimized for the Shimano STEPS system. With this combination there is no need for platform or lockout levers, just get on and blast up the hills. 160mm front/150mm rear travel.

ADJUSTABLE GEOMETRY

Adjustable geometry features are new to the Alpine Trail E Bosch models - integrated chainstay flip chips and an adjustable headset yield six possible configurations to suit a variety of trails best.

Flip chips are easy to reconfigure trailside and are quickly changed using a 6mm hex wrench. They require no additional parts and incorporate laser-etched graphics that indicate the position of the chips. Furthermore, the flip chips located at the seatstay pivots alter the bottom bracket height and chainstay length (low BB/long CS setting = 347/443mm, high BB/short CS setting = 352/435mm) so that riders can perfectly dial their bike in to match the terrain they are looking to conquer.

Finally, using Marin's proprietary headset cups and inserts, the headtube angle can be adjusted to +0.75° or -0.75° from the standard 63° position, giving the rider three options to best suit their preferences.

MIXED WHEEL SIZES

29” front and 27.5”+ rear wheel sizes are the ideal combination for the Alpine Trail E, with larger front wheel easily rolling over most any trail obstacle and offering the best cornering traction, while the burly 27.5” x 2.8” rear setup adds playfulness and enhances acceleration and braking traction.

PROTECTION

Shimano models: A stout and durable rubber guard protects the chainstay, while a durable and replaceable guard on the leading edge of the drive unit keeps the internals safe from whatever the rider is likely to kick up on the trail. CushCore inserts enhance tire performance and traction while also protecting the rims on the Alpine Trail E2 and E1 models.

Bosch models: Chainstays and seatstays are protected with durable rubber guards that minimize noise and protect paint finishes. Made from a 30% fiberglass-infused nylon, similar to what is used on safety and football helmets, the moto-inspired integrated downtube guard helps deflect errant rocks, logs, or anything else riders may encounter on the trail. This guard also includes drain ports to let moisture flow from the frame. Cable ports are of an all-new design and keep the frame innards sealed. These ports use rubber membranes punctured during initial assembly and seal around the housing or hose once inserted. Out at the wheels, CushCore inserts enhance tire performance and traction while also protecting the rims on both models.

DROPPER POST OPTIMIZED

The modern day trail rider needs their saddle out of the way at times, while low-slung frames require longer length posts. On the Alpine Trail E, seat tube lengths have been minimized, along with minimum insertion depths, so that riders of all sizes can get the proper extension needed.
